Symphysis Pubic Symphysis: Mastering ORIF for Disruption

Comprehensive Introduction and Patho-Epidemiology

The pubic symphysis is a critical midline amphiarthrodial joint that forms the anterior keystone of the pelvic ring. Structurally, it comprises a robust fibrocartilaginous disc interposed between the hyaline cartilage-lined articular surfaces of the two pubic bodies. A diastasis of the pubic symphysis is a hallmark of high-energy pelvic ring disruption, signifying profound mechanical instability. In the context of pelvic trauma, the integrity of the symphysis is paramount; its failure is most classically associated with anterior-posterior compression (APC) injuries, as delineated by the Young and Burgess classification system. These "open book" injuries subject the anterior pelvic ring to severe tensile forces, leading to tearing of the symphyseal ligaments and the fibrocartilaginous disc. Occasionally, lateral compression (LC) fractures can also involve symphyseal disruption, particularly when the hemipelvis is crushed inward, causing the contralateral rami to fracture and the symphyseal body to tilt inferiorly, creating a complex rotational deformity.

The pathogenesis of symphyseal disruption is directly tied to the magnitude and vector of the deforming force. In APC type I injuries, minor widening of the symphysis occurs without catastrophic disruption of the posterior pelvic floor or the critical sacrospinous ligaments. However, biomechanical cadaveric studies have unequivocally demonstrated that symphyseal widening exceeding 2.5 cm is pathognomonic for the gross failure of the sacrospinous ligaments. Once these primary rotational stabilizers are sectioned or ruptured, the pelvis transitions into a rotationally unstable state. If the pelvic floor and the sacrospinous ligaments are torn, the involved hemipelvis externally rotates "down and out." In these scenarios, the intact posterior sacroiliac ligaments act as a hinge, allowing the injured hemipelvis to rotate inferiorly, leaving the pubic body on the injured side significantly malaligned relative to the intact side.

Beyond high-energy trauma, a diastasis of the pubic symphysis can also manifest during pregnancy and childbirth. This distinct patho-epidemiological entity is driven by hormonally induced ligamentous laxity—primarily mediated by relaxin and progesterone—which softens the pelvic ligaments to facilitate parturition. While minor widening is physiologic, traumatic diastasis during childbirth occurs in approximately 1 in 2,000 to 1 in 30,000 deliveries. In severe cases, the diastasis can reach up to 12 cm, leading to profound acute pain and, if unrecognized, chronic anterior pelvic instability. Symphyseal pelvic dysfunction is a relatively common postpartum condition presenting as anterior pelvic pain secondary to this laxity. While it typically resolves spontaneously over several months with conservative measures such as pelvic binders and lateral decubitus positioning, recalcitrant cases with persistent instability may ultimately require surgical stabilization to relieve debilitating symptoms.

The natural history of untreated or inadequately stabilized unstable pelvic fractures is fraught with significant long-term morbidity. Historically, early studies evaluating the nonoperative treatment of unstable pelvic fractures revealed that nearly one-third of patients suffered from disabling pain, sitting imbalance, and an impaired, painful gait. In a landmark retrospective analysis by Tile, APC type II injuries managed nonoperatively exhibited a 13% incidence of late pain, predominantly characterized as moderate to severe. APC type III injuries fared even worse, with a 16% incidence of late, recalcitrant pain. Furthermore, the high-energy nature of these injuries means that patients frequently present with concomitant multi-system trauma. Urologic injuries, including bladder ruptures and urethral tears, occur in approximately 15% of pelvic trauma cases and can lead to late complications such as urethral strictures and incontinence. Neurologic injuries, particularly involving the L4 and L5 nerve roots, as well as dyspareunia and sexual dysfunction, further complicate the clinical picture, emphasizing the need for anatomic reduction and rigid internal fixation to optimize functional outcomes.

Detailed Surgical Anatomy and Biomechanics

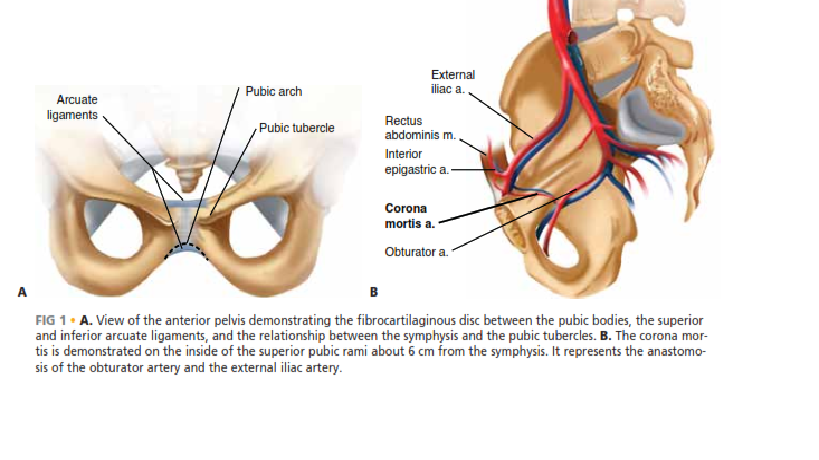

A profound understanding of the surgical anatomy of the anterior pelvic ring is non-negotiable for the orthopedic surgeon undertaking open reduction and internal fixation (ORIF) of the pubic symphysis. The symphysis itself is an amphiarthrodial joint stabilized by a complex network of ligaments. The primary anterior stabilizers are the superior and inferior arcuate ligaments. The superior pubic ligament is a thick, fibrous band that traverses the superior aspect of the pubic bodies, blending with the rectus abdominis fascia. The inferior arcuate ligament, also known as the arcuate pubic ligament, is a dense, arching structure that rounds off the subpubic angle and provides substantial resistance to shear and tensile forces. Together, these ligaments encapsulate the fibrocartilaginous disc, which acts as a shock absorber during weight-bearing and ambulation.

The biomechanical stability of the pelvic ring is highly dependent on the interplay between the anterior symphyseal structures and the posterior ligamentous complex. The sacrospinous and sacrotuberous ligaments are the unsung heroes of pelvic stability. Connecting the sacrum to the ilium via the ischial spine and the ischial tuberosity, respectively, these ligaments are critical in resisting the rotational and translational forces exerted on the hemipelvis. Specifically, the sacrospinous ligament resists external rotational forces, while the sacrotuberous ligament prevents both rotation and vertical translation of the hemipelvis. When a high-energy APC force disrupts the symphysis and propagates posteriorly to tear these ligaments, the resulting symphyseal widening becomes dramatically more significant, necessitating surgical intervention to restore the tension band effect of the pelvic floor.

Vascular anatomy in the retropubic space presents a formidable hazard during surgical exposure and fixation. The most critical vascular structure to identify and protect is the corona mortis (the "crown of death"). This vessel represents a variable but highly clinically significant anastomosis between the obturator artery (or vein) and the external iliac artery (or vein). It is typically located approximately 6 cm lateral to the symphysis on the posterior aspect of the superior pubic ramus. Iatrogenic injury to the corona mortis during aggressive subperiosteal dissection or aberrant drill penetration can result in catastrophic, difficult-to-control hemorrhage, as the vessel can retract into the true pelvis. Surgeons must also be acutely aware of the pubic tubercle, a prominent bony landmark lateral to the symphysis on the superior rami that serves as the attachment site for the inguinal ligament. This prominence must be carefully accounted for when contouring a reconstruction plate that spans the symphysis.

Sexual dimorphism of the human pelvis dictates that the surgeon must individualize their approach to plate contouring and hardware placement. Anatomic variations between the sexes are pronounced; females possess a wider, more rounded pelvic inlet, making their anterior pelvic ring significantly more concave than that of males. Furthermore, the pelvic arch formed by the convergence of the inferior rami tends to be more rounded in females because their pubic bodies are shallower. Conversely, the male pelvic ring is more oval, with a much more acute anterior angle due to thicker, more robust pubic bodies. Recognizing these morphological differences is essential during the pre-bending of symphyseal plates. Failure to accurately match the concavity of the female pelvis or the acute angle of the male pelvis can lead to malreduction, hardware prominence, or eccentric loading of the screws, ultimately predisposing the construct to mechanical failure.

Exhaustive Indications and Contraindications

The decision to proceed with operative stabilization of the pubic symphysis hinges on a meticulous assessment of pelvic ring stability, the patient's physiologic status, and the presence of associated injuries. The absolute indication for ORIF of the pubic symphysis is a diastasis exceeding 2.5 cm. As previously established, this degree of displacement is a reliable proxy for the rupture of the sacrospinous ligaments and the pelvic floor, defining a rotationally unstable pelvis (APC type II or III). In APC type II injuries, where the posterior sacroiliac ligaments remain intact but the anterior ring is sprung, isolated anterior fixation is often sufficient to restore stability, as the intact posterior hinge allows the anterior plate to act as a tension band. In APC type III injuries, which are both rotationally and vertically unstable, anterior fixation is a critical component of a comprehensive 360-degree pelvic reconstruction, often performed in conjunction with posterior sacroiliac screw fixation or plating.

Another distinct indication for anterior stabilization involves specific lateral compression (LC) variants, particularly "tilt fractures." In these injuries, the compressed hemipelvis causes the contralateral rami to fracture and the contralateral symphyseal body to tilt inferiorly into the perineum. Because this displaced bony fragment can impinge upon or compress the bladder, urethra, or—in females—the birth canal, it must be anatomically reduced and rigidly fixed. Furthermore, anterior stabilization is indicated in vertically unstable pelvic fractures to improve the overall mechanical rigidity of the pelvic ring construct. Surgical intervention is also mandated when a pelvic injury is associated with an open abdominal wound requiring an exploratory laparotomy, as the general surgery team's midline incision can be utilized or extended to concurrently plate the symphysis, thereby preventing the catastrophic complication of an open, unstable pelvic fracture communicating with the abdominal cavity.

Nonoperative management is strictly reserved for mechanically stable injuries. APC type I injuries, which correspond to Tile type A stable pelvic fractures, do exceptionally well with conservative care. These patients, typically younger individuals involved in moderate-energy trauma or elderly patients suffering low-energy falls, exhibit minimal separation of the symphysis (<2.5 cm) and intact posterior ligaments. They can be managed with protected weight-bearing and close radiographic surveillance. Similarly, most cases of postpartum symphyseal diastasis are managed nonoperatively. Despite the dramatic radiographic appearance, the vast majority of these women recover fully without residual pain or instability when treated with pelvic binders, specialized girdles, and strict adherence to the lateral decubitus position during rest. Operative intervention for pregnancy-induced diastasis is exceedingly rare and is only indicated for recalcitrant, severe pain and demonstrable instability persisting for at least 4 to 6 months postpartum.

Contraindications to ORIF of the symphysis must be respected to avoid exacerbating morbidity. The primary absolute contraindication is a hemodynamically unstable patient in extremis. In such scenarios, definitive fixation must be deferred in favor of damage control orthopedics, which includes the application of a pelvic binder, external fixation, or pre-peritoneal pelvic packing. Severe local soft tissue compromise, such as a massive Morel-Lavalle lesion over the anterior pelvis or a grossly contaminated open perineal wound, represents a significant relative contraindication to immediate internal fixation due to the prohibitive risk of deep surgical site infection. In these cases, spanning external fixation using supra-acetabular or iliac crest pins is the preferred temporizing measure until the soft tissue envelope has adequately recovered.

Pre-Operative Planning, Templating, and Patient Positioning

The initial management of a patient with a disrupted pubic symphysis begins in the trauma bay, long before the patient reaches the operating room. High-energy pelvic injuries are notorious for massive retroperitoneal hemorrhage. Patients must be aggressively resuscitated and hemodynamically stabilized. The pelvis should be immediately stabilized to reduce pelvic volume and promote the tamponade of venous bleeding. This can be achieved by placing the ankles together with padded Ace wraps and applying a commercial pelvic binder or a tightly wrapped bedsheet centered precisely over the greater trochanters. The sheet can be affixed with towel clips to maintain tension. If a patient requires more than 4 units of packed red blood cells to maintain hemodynamic stability despite mechanical compression, an emergent CT angiogram or formal angiography should be obtained to diagnose and embolize any arterial injuries, which are particularly prevalent in APC type III injuries.

Clinical evaluation must be exhaustive. A careful visual inspection of the skin is required to identify areas of ecchymosis, hematoma formation, and the presence of a Morel-Lavalle lesion—a closed degloving injury that indicates massive shearing forces have separated the subcutaneous tissue from the underlying fascia. Recognition of this lesion is critical, as incising through a Morel-Lavalle lesion exponentially increases the risk of postoperative infection.

A thorough urologic and neurologic examination is mandatory. In males, a high-riding prostate on rectal examination or blood at the urethral meatus strongly suggests a urethral or bladder injury. In such cases, the placement of a Foley catheter is strictly contraindicated until a retrograde urethrogram is performed. Urethral injuries are less common in females due to their shorter urethral anatomy, but a high index of suspicion must remain. Neurologically, the L4 and L5 nerve roots are particularly vulnerable to traction injuries in unstable pelvic fractures; a meticulous motor and sensory exam of the lower extremities is essential to document any deficits prior to surgical intervention.

Radiographic evaluation forms the cornerstone of preoperative planning. The standard trauma series includes an anteroposterior (AP) view of the pelvis, supplemented by inlet and outlet views to assess the true rotational and vertical displacement of the pelvic ring. Judet views may be added if concomitant acetabular fractures are suspected.

A high-resolution CT scan of the pelvis with 2D and 3D reconstructions is indispensable. The CT scan allows for a granular evaluation of the posterior sacroiliac joints, sacral fractures, and the exact morphology of the pubic rami. For patients with suspected chronic instability (such as late postpartum presentations), single-leg stance radiographs (flamingo views) can dynamically demonstrate symphyseal translation and confirm the diagnosis. Preoperative templating involves selecting the appropriate multi-hole reconstruction plate and anticipating the degree of contouring required based on the patient's sex and native pelvic morphology as seen on the 3D CT reconstructions.

Patient positioning is a critical step that dictates the ease of the surgical approach and reduction. The patient is placed supine on a fully radiolucent Jackson table or a flat trauma table. The arms are typically tucked to allow the surgeon and assistant unhindered access to the patient's torso. A bump may be placed under the sacrum to slightly elevate the pelvis, facilitating the reduction of externally rotated hemipelves. The entire abdomen, from the costal margin to the mid-thighs, must be prepped and draped to allow for proximal extension of the incision and access to the iliac crests if percutaneous posterior fixation or external fixation becomes necessary. Fluoroscopy is brought in from the contralateral side of the primary surgeon, and the C-arm must be able to freely obtain AP, inlet, and outlet views without obstruction from the table base. A Foley catheter (if cleared by urology) is placed to decompress the bladder, moving it out of the surgical field and reducing the risk of iatrogenic injury during the retropubic dissection.

Step-by-Step Surgical Approach and Fixation Technique

The surgical approach to the pubic symphysis is classically performed via a Pfannenstiel incision. The skin incision is made transversely, approximately 2 centimeters superior to the palpable pubic symphysis, extending laterally to the lateral borders of the rectus abdominis muscles. Subcutaneous tissue is sharply dissected down to the rectus fascia. The anterior rectus sheath is then incised transversely or longitudinally in the midline. The linea alba is identified, and the rectus abdominis muscles are bluntly separated along their median raphe. It is critical to stay strictly in the midline to avoid injuring the inferior epigastric vessels. Once the rectus muscles are retracted laterally, the retropubic space of Retzius is entered. The surgeon must carefully mobilize the bladder posteriorly using a blunt sponge stick or a malleable retractor, taking great care to protect the dome of the bladder and any indwelling Foley catheter. The superior pubic rami are exposed subperiosteally, clearing just enough soft tissue to accommodate the plate and reduction clamps. Aggressive lateral dissection must be avoided to prevent catastrophic injury to the corona mortis.

Reduction of the symphyseal diastasis is often the most challenging aspect of the procedure. For pure APC injuries, the reduction can frequently be achieved by applying internal rotation forces to the greater trochanters or by utilizing specialized pelvic reduction clamps. A Weber clamp or a Jungbluth clamp is typically employed. To use a Jungbluth clamp, two small drill holes are made in the robust bone of the pubic tubercles on either side of the symphysis. The tines of the clamp are inserted into these holes, and the clamp is slowly tightened to compress the symphysis.

The surgeon must meticulously evaluate the reduction in all three planes. It is not sufficient to simply close the gap; cranial/caudal translation (step-off) and flexion/extension deformities of the pubic bodies must be anatomically corrected. This often requires the use of a dental pick or a small elevator placed directly into the symphyseal joint to manipulate the fibrocartilaginous disc and align the articular surfaces perfectly. Fluoroscopic inlet and outlet views are obtained to confirm the anatomic reduction before proceeding with fixation.

Fixation is achieved using a stout, multi-hole reconstruction plate. A 4.5mm or 3.5mm pelvic reconstruction plate (typically 4 to 6 holes) is selected. The plate must be meticulously contoured to match the native anatomy of the superior pubic rami. As previously noted, the plate must be under-contoured slightly to accommodate the pubic tubercles and must respect the sexual dimorphism of the pelvis (concave in females, more acutely angled in males).

The plate is typically positioned on the superior aspect of the symphysis. Drilling must be performed with extreme caution. The drill bit should be directed slightly inferiorly and posteriorly, aiming for the dense bone of the pubic body, while strictly avoiding penetration into the symphyseal joint space or the retropubic space where the bladder and iliac vessels reside. A drill stop or a protective sleeve is highly recommended. Screws are placed sequentially, starting with the holes closest to the symphysis and working laterally.

In cases of severe instability, a second plate may be applied orthogonally on the anterior aspect of the symphysis to create a 90-90 construct, providing superior biomechanical rigidity against torsional forces. Once fixation is complete, final fluoroscopic images are saved, the retropubic space is thoroughly irrigated, and a closed suction drain may be placed if hemostasis is a concern. The rectus fascia is meticulously closed with heavy, non-absorbable figure-of-eight sutures to prevent postoperative hernias, followed by standard layered closure of the subcutaneous tissue and skin.

Complications, Incidence Rates, and Salvage Management

Despite meticulous surgical technique, ORIF of the pubic symphysis carries a substantial risk of postoperative complications, driven by the high-energy nature of the initial trauma and the complex regional anatomy. Urologic complications are among the most prevalent and debilitating. Bladder ruptures and urethral tears occur in approximately 15% of patients with unstable pelvic ring disruptions. Even when managed appropriately by urology, these injuries can lead to late complications such as urethral strictures, neurogenic bladder, and urinary incontinence. In women, particularly those with severe APC injuries, an increased incidence of stress incontinence and dyspareunia is well documented. Sexual dysfunction in males, often secondary to traction injury to the pudendal nerve or direct trauma to the prostatic plexus, is a devastating complication that requires multidisciplinary management and extensive patient counseling.

Hardware failure and loss of reduction represent significant mechanical complications. The pubic symphysis is subjected to immense physiologic loads during weight-bearing and cyclical loading during ambulation. Consequently, broken screws, plate fracture, or recurrent symphyseal diastasis can occur, particularly if the posterior pelvic ring was inadequately stabilized. Biomechanical studies indicate that the anterior plate acts merely as a tension band; if the posterior sacroiliac ligaments remain disrupted and unfixed, the anterior plate will inevitably fail under the cantilever bending forces. Minor asymptomatic screw breakage with a stable, fibrous union of the symphysis is relatively common and usually requires no intervention. However, catastrophic failure with recurrent instability and pain necessitates revision surgery, which may involve removing the broken hardware, placing a larger orthogonal plate construct, and ensuring rigid posterior fixation.

Infection is a dreaded complication, particularly given the proximity of the incision to the perineum and the genitourinary tract. The infection rate is significantly elevated in patients with concurrent urologic injuries, open fractures, or unrecognized Morel-Lavalle lesions. Superficial infections can often be managed with targeted oral antibiotics and local wound care. However, deep retropubic space infections or osteomyelitis of the pubic bodies require aggressive surgical debridement, hardware removal (if the fracture is united or if the infection cannot be suppressed), and prolonged intravenous antibiotics. In extreme cases of chronic, painful symphyseal instability or recalcitrant nonunion following hardware failure, salvage management involves a formal symphyseal arthrodesis. This technically demanding procedure requires complete excision of the fibrocartilaginous disc, decortication of the articular surfaces down to bleeding subchondral bone, interposition of autologous iliac crest bone graft, and rigid dual-plate fixation to achieve a solid bony fusion.

Phased Post-Operative Rehabilitation Protocols

The postoperative rehabilitation following ORIF of the pubic symphysis must be carefully phased to protect the anterior fixation while preventing the systemic complications of prolonged immobility. The protocol is heavily dictated by the integrity of the posterior pelvic ring and whether concurrent posterior fixation was performed.

Phase I: Acute Healing and Protection (Weeks 0 - 6)

Immediately postoperatively, the primary goals are pain control, mobilization out of bed, and the prevention of deep vein thrombosis (DVT). Due to the high risk of venous thromboembolism in pelvic trauma, chemical DVT prophylaxis (e.g., low molecular weight heparin) is mandatory unless strictly contraindicated by concomitant intracranial or solid organ hemorrhage. Weight-bearing status is critical. For patients with an isolated anterior injury (APC type II) where the posterior ring is stable, touch-down weight bearing (TDWB) or partial weight-bearing on the affected side may be permitted with the use of a walker. However, if the injury involved a completely unstable posterior ring (APC type III) that required fixation, the patient is typically restricted to strict non-weight bearing (NWB) or TDWB bilaterally for the first 6 weeks to protect both the anterior and posterior constructs. Patients are encouraged to sit upright and transfer to a chair to prevent pulmonary complications, though prolonged sitting on hard surfaces should be avoided to prevent skin breakdown over the sacrum.

Phase II: Progressive Loading and Strengthening (Weeks 6 - 12)

At the 6-week mark, clinical and radiographic evaluations are performed. AP, inlet, and outlet radiographs are scrutinized for maintenance of reduction and any signs of hardware failure. If the clinical exam is reassuring and radiographs show no displacement, the patient transitions into Phase II. Weight-bearing is progressively advanced by 25% of body weight per week, transitioning from a walker to crutches, and eventually to a cane. Physical therapy focuses on restoring normal gait mechanics, which are often profoundly altered due to ab
