Clavicle Fractures: Intramedullary Fixation Guide, courtesy of Steven B.

Comprehensive Introduction and Patho-Epidemiology

The clavicle is undeniably one of the most frequently fractured bones in the human skeleton, representing approximately five to ten percent of all adult fractures and up to forty-four percent of all injuries involving the shoulder girdle. Within the clavicle itself, the middle third is the most vulnerable, accounting for roughly eighty percent of all clavicular fractures. This distinct epidemiologic pattern is intimately linked to the unique morphological and biomechanical characteristics of the midclavicular region. As the thinnest and narrowest portion of the bone, the midshaft is entirely devoid of muscular or ligamentous support, leaving it exceptionally susceptible to structural failure under traumatic loading. Furthermore, this region represents a critical transitional zone, both in terms of its cross-sectional anatomy and its macroscopic curvature, acting as the mechanical weak point between the flatter lateral segment and the more robust, tubular medial segment.

Historically, the pathogenesis of these fractures was frequently attributed to a fall onto an outstretched hand (FOOSH). However, rigorous biomechanical and kinematic studies, most notably those conducted by Stanley and colleagues, have fundamentally shifted our understanding of the injury mechanism. In a landmark analysis of over one hundred injured patients, Stanley demonstrated that a staggering eighty-seven percent of midshaft clavicle fractures resulted from a direct fall onto the lateral aspect of the shoulder. Only six percent of patients reported a true FOOSH mechanism. In these rare instances, it is postulated that the compressive forces transmitted through the upper extremity equivalent to the patient's body weight rapidly exceed the critical buckling load of the clavicle's S-shaped strut, resulting in catastrophic structural failure. The axial load generated by a direct blow to the shoulder creates a virtual right angle of force at the midclavicle, translating into massive tensile strain along the anterior midcortex and initiating the fracture cascade.

The natural history of midshaft clavicle fractures has undergone a dramatic paradigm shift over the past several decades. In the 1960s, foundational literature published by Neer and Rowe established nonoperative management as the gold standard, citing exceptionally low nonunion rates (ranging from 0.1% to 0.8%) with conservative care, juxtaposed against higher nonunion rates (up to 4.6%) following surgical intervention. For generations, benign neglect, supported by a simple sling or figure-of-eight bandage, was the accepted dogma. However, modern prospective studies utilizing validated patient-reported outcome measures have unequivocally demonstrated that the historical reliance on conservative management severely underestimated the functional morbidity associated with malunion and nonunion. Contemporary data reveal that a significant percentage of patients with displaced fractures treated nonoperatively remain highly symptomatic, suffering from chronic pain, diminished shoulder strength, and rapid fatigability.

Specifically, malunion characterized by shortening greater than 15 to 20 millimeters has been definitively linked to profound shoulder dysfunction. McKee and associates famously identified a cohort of patients with symptomatic midclavicle malunions following closed treatment, all of whom exhibited shortening exceeding 15 millimeters. These patients universally reported dissatisfaction and functional impairment, which were reliably reversed following corrective osteotomy and rigid fixation. Similarly, Hill and coworkers, as well as Eskola and colleagues, corroborated these findings, establishing that shortening beyond the 15-to-20-millimeter threshold significantly alters the resting biomechanics of the shoulder girdle. This shortening effectively medializes the glenoid, decreasing the tension and mechanical advantage of the rotator cuff and deltoid musculature, thereby precipitating long-term kinematic dysfunction.

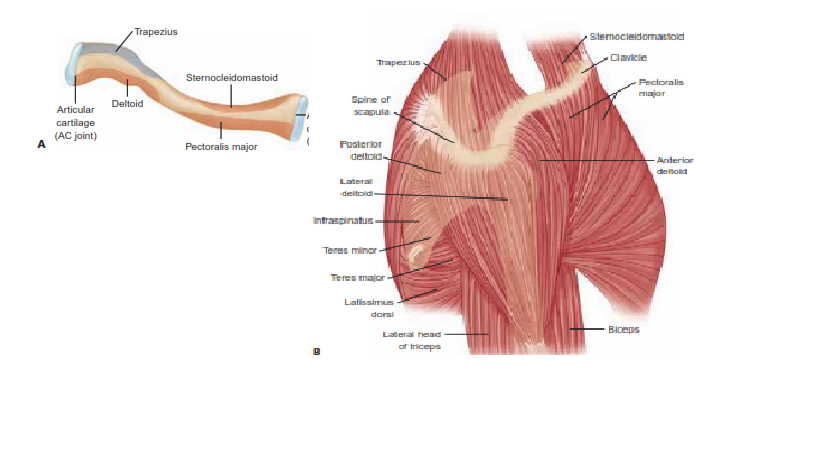

Detailed Surgical Anatomy and Biomechanics

A profound mastery of clavicular anatomy is the absolute prerequisite for safe and effective intramedullary fixation. Embryologically, the clavicle is entirely unique; it is the first bone in the human body to begin ossification (during the fifth week of fetal gestation) and the only long bone to ossify via a complex combination of both intramembranous and endochondral pathways. Macroscopically, the clavicle exhibits a distinct S-shaped, double-curve configuration. The medial two-thirds of the bone present with an anteriorly directed apex, while the lateral one-third curves with a posteriorly directed apex. This sinusoidal morphology is not merely cosmetic; the larger medial curvature serves a vital protective function, creating a bony vault that shields the underlying neurovascular bundle—comprising the brachial plexus and the subclavian artery and vein—as it traverses the thoracic outlet toward the axilla.

The internal osseous architecture of the clavicle further complicates surgical intervention. Unlike the femur or tibia, the clavicle lacks a uniform, well-defined medullary canal. Instead, the medullary space is heavily populated with dense, interlacing trabecular bone. This anatomical idiosyncrasy necessitates meticulous canal preparation during intramedullary nailing to avoid iatrogenic cortical perforation. The cross-sectional geometry of the bone is equally variable, transitioning gradually from a broad, flattened profile laterally, to a dense, tubular configuration in the mid-diaphysis, and finally expanding into a prismatic shape at its medial articulation with the sternum. Because the midshaft represents the transition point between these disparate cross-sectional profiles and curves, it acts as a stress riser, focusing traumatic forces and dictating the classic fracture pattern.

From a soft-tissue perspective, the clavicle is uniquely subcutaneous along its entire length, draped only by the thin, expansive platysma muscle and the overlying dermis. The supraclavicular nerves, which branch from the cervical plexus (C3-C4) to provide critical sensory innervation to the skin over the anterior chest and shoulder, descend deep to the platysma. The middle branches of these nerves frequently cross directly over the midclavicular region. Inadvertent transection or aggressive retraction of these nerves during surgical exposure frequently results in hyperesthetic neuromas or broad patches of anterior chest wall numbness, a common source of postoperative patient dissatisfaction.

Biomechanically, the clavicle functions as a rigid, fixed-length strut. It is the sole bony articulation tethering the appendicular skeleton of the upper extremity to the axial skeleton. Very strong capsular and extracapsular ligamentous complexes anchor the clavicle medially to the sternum and first rib (costoclavicular ligaments), and laterally to the acromion and coracoid process (coracoclavicular ligaments). Massive muscular forces act upon the bone continuously. Proximally, the sternocleidomastoid exerts a superior and posterior deforming force on the medial fragment, while the pectoralis major and subclavius exert an inferior pull. Distally, the weight of the arm combined with the pull of the deltoid and trapezius forces the lateral fragment inferiorly and anteriorly. This predictable interplay of muscular forces dictates the classic deformity seen in displaced midshaft fractures: the medial fragment is elevated, and the lateral fragment is depressed and medialized, resulting in the characteristic drooping shoulder.

Exhaustive Indications and Contraindications

The decision-making algorithm for operative versus nonoperative management of midshaft clavicle fractures is nuanced, requiring a meticulous synthesis of fracture morphology, patient physiology, and functional demands. While many minimally displaced fractures heal predictably with conservative care, specific clinical scenarios mandate surgical intervention to restore anatomy and optimize functional recovery. Intramedullary fixation has emerged as a highly advantageous alternative to superior or anteroinferior plate osteosynthesis, particularly for specific fracture patterns.

Absolute indications for the operative stabilization of acute midshaft clavicle fractures include open fractures, which require immediate debridement and rigid stabilization to mitigate infection risk; fractures associated with progressive neurovascular compromise; and the presence of a "floating shoulder" (ipsilateral fractures of the clavicle and the scapular neck), which severely destabilizes the superior suspensory complex. Furthermore, impending skin necrosis—evidenced by severe soft tissue tenting and blanching over a displaced fragment—represents a surgical urgency to prevent conversion to an open fracture. Polytrauma patients who rely on their upper extremities for weight-bearing, transfers, or crutch ambulation also benefit immensely from early rigid fixation.

Relative indications, which have rapidly gained traction as standard of care based on modern multicenter randomized trials, include severe displacement and shortening. Fractures exhibiting greater than 15 to 20 millimeters of shortening, or those with complete lack of cortical contact (100% displacement), are at a significantly elevated risk for symptomatic malunion and nonunion. In these cohorts, operative fixation has been definitively shown to improve functional outcomes, accelerate time to union, and dramatically lower the incidence of secondary reconstructive procedures.

When operative intervention is selected, the surgeon must choose between plate osteosynthesis and intramedullary fixation. Intramedullary fixation is particularly well-suited for simple, two-part fracture patterns (OTA/AO type 32-A) or fractures with a single, reducible butterfly fragment (OTA/AO type 32-B) located strictly within the middle third of the diaphysis. The advantages of intramedullary nailing are substantial: it requires significantly less soft tissue stripping, preserving the delicate periosteal blood supply and optimizing the biological milieu for fracture healing. The minimally invasive approach yields superior cosmetic results, a smaller incision, and less prominent hardware. Furthermore, because the implant is load-sharing rather than load-bearing, it theoretically reduces stress shielding. If hardware removal is eventually desired, extracting an intramedullary pin is vastly less morbid than removing a contoured plate, and the bone is less susceptible to immediate post-removal refracture due to the absence of multiple empty screw holes acting as stress risers.

However, intramedullary fixation is not without its limitations and distinct contraindications. It is generally contraindicated in highly comminuted fractures (OTA/AO type 32-C) where cortical contact between the main proximal and distal fragments cannot be re-established, as the device offers minimal resistance to torsional forces and relies on cortical apposition for rotational stability. Fractures extending into the very distal or proximal thirds of the clavicle are also poor candidates due to inadequate canal length for implant purchase. Historically, pin migration was a devastating complication, occasionally resulting in catastrophic intrathoracic penetration; however, modern threaded designs and lateral locking nuts have largely neutralized this risk.

Comparative Modality Table

Pre-Operative Planning, Templating, and Patient Positioning

Meticulous preoperative planning is the cornerstone of successful intramedullary clavicle fixation. The diagnostic workup begins with a comprehensive physical examination. On visual inspection, the surgeon will frequently observe notable swelling, ecchymosis, and a gross deformity characterized by the affected shoulder drooping downward, forward, and medialward. The skin must be meticulously inspected for tenting, abrasions, or the classic transverse ecchymosis indicative of a seatbelt shoulder strap injury. Gentle palpation will reveal point tenderness and crepitus. Crucially, the degree of clinical shortening must be quantified by measuring the linear distance from the sternal notch to the acromioclavicular joint bilaterally and calculating the deficit. A rigorous neurovascular examination is mandatory to rule out brachial plexus traction injuries or subclavian vessel compromise.

Radiographic evaluation requires a minimum of two high-quality orthogonal projections. A standard anteroposterior (AP) view is often obscured by the overlapping ribs and thoracic anatomy. Therefore, a 45-degree cephalic tilt view and a 45-degree caudad tilt view are absolutely essential to accurately delineate the fracture pattern, assess the degree of comminution, and evaluate the superior-inferior displacement. In clinical practice, a modified 20- to 60-degree cephalic tilt view is frequently employed to throw the clavicle free of the thoracic cage, providing an unobstructed silhouette of the osseous architecture. A broad-cassette AP view encompassing bilateral clavicles is highly recommended to precisely calculate radiographic shortening. While advanced imaging is rarely mandated for standard midshaft fractures, a computed tomography (CT) scan with three-dimensional reconstructions can be invaluable for evaluating complex multiplanar deformities, suspected intra-articular extension, or delayed unions.

Patient positioning in the operating theater must be optimized to facilitate seamless fluoroscopic imaging and unhindered manipulation of the upper extremity. Two primary positioning strategies are universally accepted: the supine position on a radiolucent Jackson table, and the modified beach chair position. When utilizing the supine approach, a one-liter intravenous fluid bag is strategically placed interscapularly, directly under the medial border of the affected scapula. This simple maneuver acts as a fulcrum, allowing the weight of the shoulder to fall posteriorly, which naturally assists in reducing the fracture by counteracting the anterior translation of the lateral fragment. The entire forequarter, from the sternal notch to the fingertips, is prepped and draped free to allow dynamic arm manipulation during reduction. The C-arm image intensifier is introduced perpendicularly from the contralateral side of the table, ensuring the surgeon has an unobstructed working field while maintaining the ability to capture rapid orthogonal views.

Alternatively, the beach chair position utilizing a specialized radiolucent shoulder-positioning device offers excellent access. The patient is elevated to approximately 30 to 45 degrees. The C-arm is brought in from the head of the bed, with the gantry rotated upside down and angled with a cephalic tilt. This setup is particularly advantageous for surgeons who prefer operating from a superior vantage point and allows for excellent gravitational assistance in clearing the surgical field of blood. Regardless of the chosen position, the surgeon must verify that perfect AP and cephalic tilt fluoroscopic images can be obtained prior to making the incision.

Step-by-Step Surgical Approach and Fixation Technique

The surgical execution of intramedullary clavicle fixation demands precision, an intimate respect for the surrounding neurovascular structures, and a thorough understanding of the bone's internal topography. The procedure begins with the precise marking of the superficial landmarks: the sternoclavicular joint, the acromioclavicular joint, the palpable fracture gap, and the planned incision site. Utilizing fluoroscopy, the optimal incision is localized directly over the distal aspect of the medial fragment. An incision of approximately 2 to 3 centimeters is made horizontally, meticulously following the Langer lines of the natural cervical skin creases to ensure an aesthetically pleasing scar.

Dissection proceeds sharply through the dermis and subcutaneous adipose tissue. Full-thickness fasciocutaneous flaps are gently elevated circumferentially to expose the underlying platysma muscle. Electrocautery is used sparingly to maintain hemostasis. The platysma is then bluntly split in line with its muscle fibers. This is a critical juncture in the operation; the surgeon must actively anticipate the presence of the middle branches of the supraclavicular nerve, which lie immediately deep to the platysma. These nerves must be identified, gently mobilized, and protected with vessel loops or blunt retractors. Indiscriminate transection will result in a painful neuroma and anterior chest numbness. Once the nerves are safeguarded, the fracture hematoma is evacuated, and the disrupted periosteal envelope is identified. In acute settings, the fracture ends are usually readily visible without the need for further soft tissue stripping. Any interposed muscle or fascial tissue is cleared, but soft tissue attachments to butterfly fragments must be rigorously preserved to maintain their vascularity.

Preparation of the medullary canal is the most technically demanding phase of the operation. The technique described herein utilizes a robust intramedullary device, such as the modified Hagie pin or the Rockwood Clavicle Pin. A bone-reducing clamp or a pointed Weber towel clip is applied to the medial fragment to elevate it into the surgical wound. Due to the dense trabecular nature of the clavicular medulla, the canal must be sequentially sized and drilled. Using the appropriate-size drill bit or hand reamer, the canal of the medial fragment is prepared. The C-arm is utilized extensively during this step to confirm the trajectory of the drill, ensuring it remains perfectly centered within the canal and does not breach the anterior or posterior cortices. The medial canal is typically prepared to a depth of approximately 3 to 4 centimeters.

Attention is then turned to the lateral fragment. The lateral fragment is elevated, and the drill is introduced into its medullary canal. The drill is advanced laterally and slightly posteriorly, following the natural curve of the bone, until it intentionally breaches the posterolateral cortex of the clavicle, exiting posteriorly to the acromioclavicular joint. This exit point must be carefully monitored with fluoroscopy to ensure it does not compromise the AC joint capsule or penetrate the suprascapular nerve.

Once both fragments are adequately prepared, the intramedullary pin is introduced. The blunt end of the pin is passed retrograde into the drilled canal of the lateral fragment. It is advanced laterally using a T-handle or power drill until the medial end of the pin is flush with the fracture site. The surgeon then meticulously reduces the fracture. This often requires a combination of direct manipulation of the fragments with bone clamps, lateral traction on the arm, and posterior translation of the shoulder girdle. Once anatomical cortical apposition is achieved and verified fluoroscopically, the pin is driven antegrade across the fracture site and into the prepared medial fragment.

The pin is advanced until the lateral threaded portion engages the dense bone of the posterolateral cortex. To definitively prevent medial migration—a historical complication of smooth pins—a low-profile locking nut is threaded onto the lateral end of the pin and seated firmly against the posterolateral cortex. The excess pin is then cut flush with the nut to minimize soft tissue irritation. Final orthogonal fluoroscopic images are obtained to confirm excellent fracture reduction, appropriate implant length, and the absence of cortical breaches. The wound is irrigated copiously, the platysma is repaired with absorbable suture to prevent a widened scar, and the skin is closed with a subcuticular stitch.

Complications, Incidence Rates, and Salvage Management

While intramedullary fixation of the clavicle offers numerous biological and biomechanical advantages, it is imperative that the operative surgeon is intimately familiar with the potential complications. A comprehensive understanding of these pitfalls allows for early recognition and appropriate salvage management. The complication profile of intramedullary nailing differs significantly from that of plate osteosynthesis, primarily revolving around hardware-related issues and the unique anatomical constraints of the intramedullary canal.

Historically, the most feared complication of intramedullary clavicle fixation was hardware migration. Smooth pins, such as the classic Steinmann pin, had a propensity to migrate medially due to the cyclic loading of the shoulder girdle, occasionally resulting in catastrophic penetration of the pleura, subclavian vessels, or even the mediastinum. However, the advent of modern threaded devices, such as the Rockwood pin or Titanium Elastic Nails (TENs) equipped with lateral end-caps or locking nuts, has reduced the incidence of catastrophic migration to near zero. Nevertheless, minor lateral back-out of the pin can still occur, particularly in osteoporotic bone or if the lateral cortex is over-drilled. If symptomatic lateral prominence occurs after clinical union is achieved, early hardware removal is curative.

Nonunion and malunion remain persistent, albeit rare, complications following intramedullary fixation, typically occurring in less than 2% to 3% of cases. Nonunion in the setting of an intramedullary device is almost exclusively the result of attempting to nail a highly comminuted fracture pattern where cortical contact cannot be established. Because the IM pin is a load-sharing device with limited torsional stability, the lack of cortical interlocking allows for excessive micro-motion and rotational instability, culminating in a hypertrophic or atrophic nonunion. Salvage management for an established nonunion requires a secondary operation: removal of the intramedullary device, aggressive debridement of the nonunion site, application of autologous iliac crest bone graft (ICBG), and rigid stabilization with a robust pre-contoured locking plate.

Infection is a devastating complication in any orthopedic procedure. Superficial surgical site infections occur in approximately 1% to 2% of cases and can typically be managed with targeted oral antibiotic therapy and local wound care. Deep infections involving the medullary canal are exceedingly rare but demand aggressive intervention. Management dictates immediate hardware removal, meticulous intramedullary reaming and irrigation, and the placement of an antibiotic-impregnated cement spacer. Once the infection is eradicated, definitive reconstruction can be undertaken.

Iatrogenic neurologic injury, specifically to the supraclavicular nerves, is the most common source of postoperative patient dissatisfaction. Aggressive retraction or inadvertent transection during the initial exposure can lead to a painful, hyperesthetic neuroma or a bothersome patch of numbness over the anterior chest. While the numbness often diminishes over several months as overlapping dermatomes compensate, a symptomatic neuroma may require surgical excision and burying of the nerve stump deep within the muscular bed.

Complication and Salvage Matrix

Phased Post-Operative Rehabilitation Protocols

The ultimate success of an intramedullary clavicle fixation is heavily dependent upon a meticulously structured, phased postoperative rehabilitation program. Unlike plate osteosynthesis, which provides immediate rigid torsional stability, intramedullary devices rely on a degree of load-sharing and progressive callus formation. Therefore, the rehabilitation protocol must carefully balance the need to prevent shoulder stiffness with the imperative to protect the healing osteosynthesis from excessive rotational and sheer forces.

Phase I: Immediate Postoperative Period (Weeks 0 to 2)
Immediately following surgery, the patient's upper extremity is immobilized in a standard sling. The primary goals during this initial phase are pain control, reduction of edema, and protection of the surgical repair. Patients are instructed to strictly avoid any active elevation, abduction, or lifting with the operative arm. However, to prevent distal joint stiffness, patients must diligently perform active range of motion exercises for the elbow, wrist, and hand multiple times a day. Gentle, passive pendulum exercises for the shoulder are initiated within the first 48 hours to prevent capsular adhesions.

Phase II: Early Mobilization (Weeks 2 to 6)
At the two-week mark, surgical wounds are inspected, and sutures are removed. If early radiographic evaluation demonstrates maintained alignment and initial soft callus formation, the patient is transitioned out of continuous sling use. The sling is typically reserved for use in public settings or during sleep for protection. Supervised physical therapy commences with a focus on active-assisted range of motion (AAROM). Supine forward elevation using a wand or pulley system is permitted up to 90 degrees. Internal and external rotation exercises are initiated but strictly limited to the pain-free zone with the arm adducted at the side. Active lifting, pushing, or pulling remains strictly contraindicated.

Phase III: Strengthening and Full ROM (Weeks 6 to 12)
By week six, robust clinical and radiographic evidence of bridging callus is typically present. Once union is confirmed by the treating surgeon, the patient is cleared to discontinue the sling entirely and progress to full, unrestricted active range of motion (AROM) in all planes. Physical therapy transitions toward progressive resistance exercises. Isotonic strengthening of the rotator cuff, deltoid, and periscapular stabilizers (rhomboids, serratus anterior, trapezius) is initiated using elastic bands and light free weights. Scapular dyskinesia, a common sequela of clavicle fractures, must be aggressively addressed during this phase to restore normal glenohumeral kinematics.

Phase IV: Return to High-Level Function (Months 3 to 6)
The final phase of rehabilitation focuses on work-hardening and sports-specific training. Patients may gradually return to heavy manual labor, overhead lifting
