Effective Fixation of the Tibia: Navigating Challenging Fracture Cases

Welcome to this week’s Grand Rounds. As orthopedic trauma surgeons, we are frequently confronted with devastating lower extremity injuries that challenge our clinical acumen, biomechanical understanding, and surgical dexterity. Today, we will deconstruct the highly complex topic of tibial fracture management, specifically focusing on the advanced application of external fixation in the setting of severe soft tissue compromise and polytrauma.

Detailed Patient Presentation and Mechanism of Injury

High-Energy Polytrauma and Systemic Compromise

Our index case involves a 34-year-old male who was brought to the Level 1 Trauma Center via helicopter emergency medical services after a high-speed motorcycle collision. The patient was ejected from his motorcycle at approximately 65 miles per hour, subsequently striking a steel guardrail. Upon arrival in the trauma bay, the patient was in extremis, demonstrating classic signs of the lethal triad of trauma: hypothermia, coagulopathy, and metabolic acidosis. His Glasgow Coma Scale (GCS) was depressed, and he required immediate intubation and massive transfusion protocol initiation. In such high-energy polytrauma scenarios, the systemic physiological insult dictates our orthopedic intervention, mandating a Damage Control Orthopedics (DCO) approach rather than early total care.

Bilateral Complex Tibial Pathology

Secondary survey revealed devastating bilateral lower extremity injuries. The right lower extremity exhibited a severe, open Gustilo-Anderson Grade IIIB tibial shaft fracture. The mechanism involved massive energy transfer resulting in extensive soft tissue devitalization, periosteal stripping, and gross soil contamination from the roadside environment. The fracture pattern was highly comminuted, extending from the mid-diaphysis into the distal metaphyseal-diaphyseal junction. The left lower extremity presented with a closed but massively swollen high-energy tibial plateau fracture with distal diaphyseal extension, alongside an ipsilateral highly comminuted distal tibial pilon fracture.

Environmental Contamination and Soft Tissue Devitalization

Determining the exact location and environment of the accident is paramount in cases of open fractures. Because this patient was thrown into a roadside ditch, the right open tibial wound was heavily contaminated with soil and organic debris. This specific environmental exposure drastically alters our microbiological concerns, necessitating immediate broad-spectrum antibiotic coverage, including high-dose penicillin for potential Clostridium species, in addition to standard first-generation cephalosporins and aminoglycosides. The severe soft tissue contusion and degloving injury over the anteromedial border of the right tibia indicated that the local soft tissue envelope was completely incapable of supporting acute internal fixation.

The Rationale for Immediate Temporization

In this critical state, the patient was an absolute candidate for temporary, rapid stabilization. The presence of multiple long bone fractures in a hemodynamically unstable patient requires external fixation as a life-saving method for temporary, if not definitive, stabilization. The primary goal is to minimize ongoing hemorrhage from the cancellous bone ends, reduce the systemic inflammatory response syndrome (SIRS) driven by a "flail" extremity, and provide adequate stabilization to facilitate nursing care and resuscitation in the Intensive Care Unit (ICU).

Comprehensive Clinical Examination Findings

Advanced Soft Tissue Evaluation

The clinical examination of a high-energy tibial fracture extends far beyond the bony deformity; it is fundamentally an assessment of the soft tissue envelope. On the right leg, the zone of injury extended circumferentially, with a 15-centimeter laceration exposing devitalized cortical bone. The muscle bellies of the anterior compartment appeared dusky and non-contractile to electrocautery stimulation during the initial trauma bay assessment. Grading this as a Grade IIIB open injury dictated that the patient would eventually require complex soft tissue reconstruction, such as a rotational gastrocnemius flap or a free latissimus dorsi flap, which critically influenced our initial pin placement strategy to avoid compromising future flap territories.

Neurovascular Status and Ischemic Risk

A rigorous neurovascular examination is the cornerstone of the initial assessment. The posterior tibial and dorsalis pedis pulses must be palpated and interrogated with a handheld Doppler. In our patient, the right foot exhibited a biphasic Doppler signal, but the left foot had a monophasic, dampened signal. This asymmetric finding mandated the calculation of the Ankle-Brachial Index (ABI). An ABI of less than 0.9 in the setting of a high-energy fracture is highly suspicious for an intimal tear or arterial transection. Documenting the baseline sensory and motor function of the deep peroneal, superficial peroneal, tibial, and sural nerves is equally critical, though challenging in an intubated patient.

Compartment Syndrome Vigilance

Evaluation of compartment pressures is frequently indicated in open fractures and closed high-energy fractures with severe soft tissue contusion. There is a dangerous misconception that an open fracture naturally decompresses the fascial compartments; however, the fascial laceration is rarely sufficient to decompress the entire length of the compartment. The left leg, with its closed pilon and plateau fractures, exhibited tense, non-compressible compartments with skin blistering (fracture blisters). Intracompartmental pressure monitoring using a Stryker needle revealed absolute pressures of 45 mmHg in the anterior compartment, well above the delta-P threshold (diastolic blood pressure minus compartment pressure < 30 mmHg), necessitating emergent four-compartment fasciotomies.

Articular Involvement and Ligamentotaxis Potential

Clinical examination of the periarticular regions (the knee and ankle) is vital for determining the utility of spanning external fixation. For the left pilon fracture, the ankle was grossly unstable and foreshortened. The ability to achieve an initial ligamentotaxis reduction substantially decreases the amount of injury-related swelling and edema by reducing large fracture gaps. It is imperative to achieve this early ligamentotaxis reduction; a delay of more than a few days will result in an inability to disimpact displaced metaphyseal fragments, rendering subsequent open reduction exponentially more difficult.

Advanced Imaging and Diagnostics (X-ray, CT, MRI, Templating)

Standard Radiographic Protocols

Imaging of the tibia must always include at least two orthogonal views: a true anteroposterior (AP) and a lateral radiograph. Furthermore, it is an absolute dictum in orthopedic trauma that radiographs must visualize the joint above and the joint below the injury. In high-energy trauma, ipsilateral occult fractures (such as a missed proximal fibula fracture or a subtle tibial plateau split) are common. Initial radiographs of our patient demonstrated a highly comminuted, segmental right tibial diaphysis and a left-sided complex articular injury involving both the proximal and distal tibia.

The Role of Computed Tomography (CT)

While plain radiographs provide a macroscopic overview, Computed Tomography (CT) is mandatory for the preoperative planning of complex periarticular injuries. For the left tibial plateau and pilon fractures, fine-cut (1-2 mm) axial, coronal, and sagittal CT reconstructions were obtained after the application of the spanning external fixator. CT imaging allows the surgeon to map the articular fracture lines, identify central die-punch impactions, and understand the metaphyseal-diaphyseal dissociation. This 3D understanding is critical when transitioning from temporary external fixation to definitive open reduction and internal fixation (ORIF) or definitive circular ring fixation.

Angiography and Vascular Imaging

Given the dampened Doppler signals and an ABI of 0.8 on the left lower extremity, a CT Angiogram (CTA) with bilateral lower extremity runoff was acquired. The CTA is invaluable for differentiating between true mechanical arterial transection, intimal flaps, and flow-limiting vasospasm secondary to the massive soft tissue trauma. In our patient, the CTA demonstrated a focal occlusion of the anterior tibial artery at the level of the distal metaphyseal fracture, with robust collateral flow via the peroneal and posterior tibial arteries maintaining foot perfusion. This vascular mapping is also critical for the plastic surgery team when planning potential free tissue transfers.

Preoperative Templating and Frame Design

Preoperative templating for external fixation is just as rigorous as templating for internal fixation. The surgeon must map out the safe corridors for pin placement using the cross-sectional anatomy of the tibia. Templating involves selecting the appropriate diameter of Schanz pins (typically 5.0 mm or 6.0 mm for the adult tibia) and determining the bone-to-bar distance. The frame must be constructed and applied to allow for multiple subsequent debridements and soft tissue reconstructions. This demands that the pins are templated away from the zone of injury to avoid potential pin site contamination with the operative field or interference with future plastic surgery flap inset.

Exhaustive Differential Diagnosis

Navigating the Fixation Algorithm

The management of complex tibial fractures requires a nuanced understanding of various fixation modalities. The choice depends on the location and complexity of the fracture, the degree of comminution, and the soft tissue envelope. Open tibial diaphyseal fractures are primarily candidates for closed intramedullary nailing, but there are distinct occasions when external fixation is indicated. External fixation is favored when there is significant contamination, severe soft tissue injury, or when the fracture configuration extends into the metaphyseal-diaphyseal junction or the joint itself, making intramedullary nailing mechanically problematic and biologically hazardous.

Comparing Fixation Modalities

When evaluating a polytrauma patient with severe tibial injuries, the differential diagnosis for the surgical plan must be rapidly formulated. We must weigh the benefits of intramedullary devices, monolateral external fixators, circular/hybrid frames, and even primary amputation in the setting of an unsalvageable mangled extremity. The less stable the fracture pattern, the more complex a frame needs to be applied to control motion at the bone ends. If periarticular extension is present, the ability to bridge the joint with the frame provides satisfactory stability for both hard and soft tissues.

The Mangled Extremity and Amputation

In cases of massive crush injuries or prolonged ischemia, primary amputation must be considered. Scoring systems like the Mangled Extremity Severity Score (MESS) can guide, but not dictate, this decision. A MESS score of 7 or higher historically suggests a high likelihood of amputation. However, with modern advances in circular external fixation, bone transport (Ilizarov techniques), and microvascular free flaps, many limbs that would have previously been amputated can now be salvaged. The decision requires a multidisciplinary approach involving orthopedic trauma, vascular, and plastic surgeons.

Comparative Table of Surgical Strategies

Complex Surgical Decision Making and Classifications

Damage Control Orthopedics (DCO) Implementation

Application of these techniques in a polytrauma patient is immensely valuable when rapid stabilization is necessary for a patient in extremis. Simple monolateral or monotube fixators can be placed rapidly across long bone injuries, providing adequate stabilization to facilitate the management and resuscitation of the polytrauma patient. The decision to utilize DCO is driven by the patient's physiological parameters—specifically, profound base deficit, hypothermia, and coagulopathy. In this state, a prolonged definitive surgery (like an IM nail or complex ORIF) would trigger a fatal "second hit" inflammatory response.

Monolateral vs. Circular Frame Selection

Contemporary external fixation systems can be categorized according to the type of bone anchorage used. This is achieved either using large threaded pins, which are screwed into the bone, or by drilling small-diameter transfixion wires through the bone. Acute trauma applications primarily use monolateral frame configurations. The simple monolateral frame comes with individual separate components (bars, attachable pin–bar clamps, Schanz pins), allowing for a wide range of flexibility with “build-up” or “build-down” capabilities. Conversely, small tensioned wire circular frames or hybrid frames are ideally suited to the metaphyseal regions where the bone is primarily cancellous with thin cortical walls. The mechanical stability achieved with half-pins depends on cortical purchase and therefore may not be adequate in this cortex-deficient region.

Anatomical Safe Corridors and Pin Placement

The cross-sectional anatomy of the diaphysis and the lateral location of the muscular compartments allow placement of half-pins in a wide range of subcutaneous locations. The bulk of the tibia is easily accessible in that most of the diaphyseal portion is subcutaneous. It is critical to facilitate pin placement “out of plane” to each other, which helps achieve overall frame stability. To accomplish this, pins are placed primarily along the anteromedial subcutaneous border of the tibia. Posterior cortex pin protrusion must be minimal to avoid damaging the posterior neurovascular structures (tibial nerve, posterior tibial artery). Furthermore, the surgeon must avoid tethering any musculotendinous structures in the anterolateral compartment to prevent equinus contractures.

Soft Tissue Considerations in Frame Design

The choice of external fixator type depends heavily on the type of wound present when dealing with open injuries. Simple monolateral fixators have the distinct advantage of allowing individual pins to be placed at different angles and varying obliquities while still connecting to the bar. This is profoundly helpful when altering the pin position to avoid areas of soft tissue compromise, open wounds, or severe contusions. If a free flap is anticipated, the orthopedic surgeon must communicate with the plastic surgeon to ensure the external fixator bars do not obstruct the microvascular anastomosis site or the pedicle geometry.

Step-by-Step Surgical Technique and Intervention

Radical Debridement and Irrigation

The surgical intervention for our patient began with aggressive, radical debridement of the right open tibial fracture. This is the most critical step in preventing deep osteomyelitis. All devitalized skin, subcutaneous fat, and necrotic muscle were excised until brisk, punctate bleeding was observed (the "paprika sign"). Devitalized, avascular cortical bone fragments devoid of soft tissue attachments were removed, even if this created a segmental bone defect. Following debridement, the wound was irrigated with 9 liters of sterile normal saline using low-pressure gravity flow to mechanically remove soil and debris.

Constructing the Simple Monolateral Frame

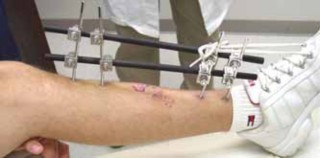

For the right diaphyseal injury, a simple monolateral frame was chosen. The stability of all monolateral fixators is based on the concept of a simple “four-pin frame.” Pin number, pin separation, and pin proximity to the fracture site, as well as bone-bar distance and the diameter of the pins and connecting bars, all influence the final mechanical stability. We utilized 5.0 mm hydroxyapatite-coated Schanz pins. Two pins were placed in the proximal intact segment and two in the distal segment, ensuring maximum spread within each segment to increase the working length and stiffness of the construct. A double-stack connecting bar was utilized to further increase frame stability against shear forces.

Spanning the Periarticular Injury

For the left pilon and plateau fractures, temporary spanning fixation was utilized. A large monotube fixator spanning the ankle was applied for the severe pilon fracture. The advantage of the monotube-type fixator is its simplicity; pin placement is predetermined by the multipin clamps. Calcaneal transfixion pins were placed, and longitudinal traction was applied to achieve ligamentotaxis. Loosening the universal articulations between the body and the clamps allows these frames to be easily manipulated to reduce a fracture. This temporizes the soft tissues, pulling the fracture out to length and reducing the massive fracture gaps, which directly mitigates ongoing edema.

Application of Tensioned Wires in the Metaphysis

In cases where the external fixator is converted to definitive treatment, particularly for metaphyseal injuries, transfixion techniques using small tensioned wires are employed. Excellent stability is afforded in these cancellous, cortex-deficient areas by using 1.8 mm smooth or olive wires tensioned to 110-130 kg. These wires are connected to circular rings. The tensioning of the wires creates a "trampoline effect," providing immense axial stability while allowing controlled micromotion. This technique avoids the purchase failure commonly seen when large half-pins are placed in osteoporotic or highly comminuted metaphyseal bone.

Strict Post-Operative Protocol and Rehabilitation Stages

Immediate Post-Operative Management and Pin Care

Post-operatively, the patient is monitored in the Surgical Intensive Care Unit (SICU). The extremities are strictly elevated to facilitate venous return and reduce edema. Pin site care is a critical component of the post-operative protocol. We advocate for daily cleansing with chlorhexidine or saline solutions, avoiding harsh cytotoxic agents like hydrogen peroxide. Crusts around the pin sites should be left intact unless there is underlying purulence, as they act as a biologic seal against bacterial ingress. Early recognition of pin tract infections—marked by erythema, serous drainage, and pain—is essential, and is typically managed with oral antibiotics and local care.

Conversion to Definitive Fixation

Once the soft tissues have recovered—evidenced by the resolution of fracture blisters, the return of skin wrinkles, and normalized systemic inflammatory markers—formal open reduction and internal fixation can be safely accomplished. In our patient's left leg, the spanning external fixator was removed at day 14, and definitive ORIF of the pilon and plateau was performed with relative ease, as the operative tactic could be directly focused on the articular involvement without fighting contracted soft tissues. For the right leg, the extensive soft tissue defect required a free latissimus dorsi flap at day 7, and the monolateral fixator was converted to a definitive circular Ilizarov frame for bone transport to address the segmental defect.

Biomechanics of Fracture Healing: The Role of Micromotion

Fractures treated with external fixation heal primarily with external bridging callus, via endochondral ossification. This type of fracture healing has the ability to bridge large gaps and is very tolerant of movement. In fact, micromotion within the external fixator construct has been found to accentuate fracture union. It results in the development of a large callus with the formation of cartilage due to the greater inflammatory response caused by increased micro-movement of the fragments. This controlled mechanical strain stimulates osteoblastic differentiation and chondrogenesis.

Dynamization and Weight-Bearing Protocols

As healing progresses, active dynamization of the frame may be required to achieve solid union. Dynamization converts a static fixator—which seeks to neutralize all forces including axial motion—into a dynamic construct that allows the passage of physiological forces across the fracture site. As the elasticity of the callus decreases, bone stiffness and strength increase, and larger loads can be supported. Axial dynamization helps to restore cortical contact and produce a stable fracture pattern. This is accomplished by making adjustments in the pin–bar clamps with simple monolateral fixators, or by releasing the telescoping body on a monotube-type fixator. Dynamic weight bearing is initiated at an early stage once the fracture is deemed stable, though delayed in highly comminuted patterns until visible callus is present.

High-Yield Clinical Pearls and Pitfalls

Mastering Pin Placement and Avoiding Tethering

A major pitfall in external fixation is the inadvertent tethering of the musculotendinous units, particularly the tibialis anterior and extensor hallucis longus in the anterolateral compartment. Pins must be placed primarily along the subcutaneous border of the tibia. When placing pins in the proximal tibia, the cross-sectional anatomy demonstrates the ability to achieve at least 120 degrees of pin divergence, which is critical for torsional stability. However, as pins are placed more distally, the safe corridor narrows, resulting in progressively smaller diversion angles. Always insert pins through a generously incised skin slit and spread the soft tissues bluntly down to the bone with a hemostat to protect neurovascular structures.
