Decode Injuries About the Ankle: From Anatomy to Recovery

Comprehensive Introduction and Patho-Epidemiology

Rotational injuries about the ankle represent one of the most frequently encountered osteoligamentous disruptions in orthopedic trauma, demanding a rigorous understanding of joint kinematics, soft tissue envelopes, and anatomic restoration. The ankle is a highly congruent, weight-bearing hinge joint where even microscopic deviations in articular alignment precipitate catastrophic alterations in load distribution and subsequent post-traumatic arthropathy. As our understanding of the syndesmotic complex and the deltoid ligament’s role in mortise stability has evolved, so too has our approach to these complex rotational fractures. The contemporary orthopedic surgeon must view these injuries not merely as isolated bony failures, but as comprehensive disruptions of a sophisticated biomechanical ring.

Population-based epidemiological studies indicate that the incidence of ankle fractures has increased dramatically since the early 1960s, a trend likely driven by an aging population remaining highly active, alongside an increasing prevalence of obesity. Current data suggest the incidence of ankle fractures is approximately 187 fractures per 100,000 people each year. The highest incidence occurs in elderly women; however, unlike proximal femur or distal radius fractures, rotational ankle fractures are generally not classified strictly as “fragility” fractures, as they require a specific rotational torque rather than simple axial impact from a standing-height fall. Furthermore, increased body mass index (BMI) is now universally recognized as an independent risk factor for sustaining an ankle fracture, complicating both the initial injury severity and the subsequent surgical management due to associated soft tissue compromise.

The distribution of fracture patterns provides critical insight into the typical mechanisms of injury. Most ankle fractures are isolated malleolar fractures, accounting for approximately two-thirds of all presentations. Bimalleolar fractures occur in one-fourth of patients, while the more severe trimalleolar fractures—involving the posterior tibial plafond—occur in the remaining 5% to 10% of cases. Open fractures of the ankle are exceedingly rare, accounting for just 2% of all ankle fractures, but they represent true orthopedic emergencies requiring immediate surgical debridement and stabilization to mitigate the profound risk of deep space infection and devastating articular destruction.

The Lauge-Hansen Classification System

The Lauge-Hansen classification remains the seminal framework for understanding rotational ankle fractures. Based on foundational cadaveric studies, this system delineates four primary patterns based on "pure" injury sequences, each subdivided into stages of increasing osteoligamentous severity. The nomenclature dictates two critical variables: first, the position of the foot at the time of injury (Supination or Pronation), and second, the direction of the deforming force applied to the talus (Adduction, Abduction, or External Rotation). While modern clinical reality and advanced imaging sometimes reveal patterns that deviate from these pure cadaveric sequences, the Lauge-Hansen system remains indispensable for predicting soft tissue injury based on radiographic bony failure.

Supination–Adduction and Supination–External Rotation

Supination-Adduction (SA) injuries account for 10% to 20% of malleolar fractures and represent the only pattern classically associated with medial displacement of the talus. Stage I involves a lateral ligament rupture or transverse avulsion of the distal fibula below the joint line, followed by Stage II, characterized by a vertical shear fracture of the medial malleolus. Conversely, Supination-External Rotation (SER) is the most common pattern, accounting for 40% to 75% of malleolar fractures. The sequence progresses predictably: Stage I (Anterior inferior tibiofibular ligament injury), Stage II (Spiral/oblique fracture of the distal fibula), Stage III (Posterior inferior tibiofibular ligament rupture or posterior malleolus fracture), and finally Stage IV (Medial malleolus fracture or deltoid ligament rupture).

Pronation–Abduction and Pronation–External Rotation

Pronation-Abduction (PA) injuries account for 5% to 20% of malleolar fractures. The sequence begins medially with Stage I (Transverse medial malleolus fracture or deltoid rupture), progresses to Stage II (Syndesmotic ligament rupture, both anterior and posterior), and culminates in Stage III (Short oblique or transverse fracture of the fibula at or above the level of the syndesmosis). Pronation-External Rotation (PER) injuries also account for 5% to 20% of fractures and represent a severe disruption of the mortise. The sequence initiates with Stage I (Deltoid ligament rupture or transverse medial malleolus fracture), advances to Stage II (Anterior inferior tibiofibular ligament rupture), Stage III (High spiral fracture of the fibula, often proximal to the syndesmosis), and finally Stage IV (Posterior inferior tibiofibular ligament rupture or posterior malleolus fracture).

Detailed Surgical Anatomy and Biomechanics

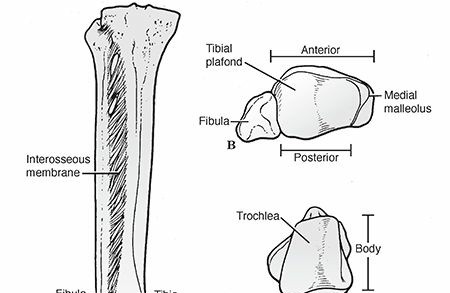

The ankle is a complex, highly constrained hinge joint composed of precise articulations among the fibula, tibia, and talus, all functioning in close association with a robust ligamentous system. The distal tibial articular surface, referred to as the “plafond,” works in concert with the medial and lateral malleoli to form the mortise. This bony architecture provides a highly constrained articulation for the talar dome. The plafond itself is concave in the anteroposterior (AP) plane but convex in the lateral plane. Crucially, it is wider anteriorly than posteriorly to allow for congruency with the wedge-shaped talus, providing intrinsic bony stability that is maximally engaged during weight-bearing dorsiflexion.

The talar dome is trapezoidal, with its anterior aspect measuring approximately 2.5 mm wider than the posterior portion. The body of the talus is almost entirely covered by articular cartilage, rendering it uniquely susceptible to avascular necrosis following severe dislocation due to the tenuous retrograde blood supply. Medially, the medial malleolus articulates with the medial facet of the talus and is anatomically divided into an anterior colliculus and a posterior colliculus. These bony prominences serve as the critical origins for the superficial and deep components of the deltoid ligament, respectively.

The Syndesmotic and Deltoid Ligament Complexes

The lateral malleolus represents the distal aspect of the fibula and provides essential lateral buttressing to the ankle. While no true articular cartilage exists between the distal tibia and fibula within the incisura fibularis, the syndesmotic ligament complex dynamically binds these structures, resisting axial, rotational, and translational forces. This complex consists of four ligaments: the anterior inferior tibiofibular ligament (AITFL), the posterior inferior tibiofibular ligament (PITFL)—which is thicker and stronger than the AITFL, often resulting in posterior malleolar avulsion rather than mid-substance rupture—the inferior transverse tibiofibular ligament, and the interosseous ligament, which is the distal continuation of the interosseous membrane.

The deltoid ligament provides indispensable support to the medial aspect of the ankle and is separated into superficial and deep components. The superficial portion originates on the anterior colliculus and includes the naviculotibial, tibiocalcaneal, and superficial talotibial ligaments; it resists hindfoot eversion but adds little to primary mortise stability. Conversely, the deep portion is an intra-articular ligament originating on the intercollicular groove and posterior colliculus, inserting on the nonarticular medial surface of the talus. Its transversely oriented fibers make it the primary medial stabilizer against lateral displacement and external rotation of the talus.

Lateral Collateral Complex and Ankle Biomechanics

The lateral ligamentous complex, while clinically significant in chronic ankle sprains, is not as robust as the medial complex. It consists of the anterior talofibular ligament (ATFL), the weakest of the three, which prevents anterior subluxation of the talus in plantar flexion; the posterior talofibular ligament (PTFL), the strongest, preventing posterior and rotatory subluxation; and the calcaneofibular ligament (CFL), which stabilizes the subtalar joint and limits inversion. Rupture of the CFL is classically indicated by a positive talar tilt test.

Biomechanically, the normal range of motion of the ankle is approximately 30 degrees of dorsiflexion and 45 degrees of plantar flexion, though motion analysis indicates that a minimum of 10 degrees of dorsiflexion and 20 degrees of plantar flexion are required for a normal gait cycle. The axis of flexion runs between the tips of the two malleoli, externally rotated roughly 20 degrees relative to the knee axis. The biomechanical imperative for anatomic reduction is stark: a lateral talar shift of merely 1 mm decreases tibiotalar surface contact by 42%, exponentially increasing focal articular stress. A 3-mm shift results in a catastrophic >60% decrease in contact area. Unrecognized syndesmotic disruption associated with a fibula fracture can easily permit a 2- to 3-mm lateral talar shift, virtually guaranteeing rapid and severe post-traumatic osteoarthritis if left unreduced.

Exhaustive Indications and Contraindications

The decision algorithm for operative versus non-operative management of rotational ankle fractures hinges almost entirely on the stability of the ankle mortise. The fundamental goal of orthopedic intervention is the restoration of congruent tibiotalar articulation to prevent post-traumatic arthropathy. Non-operative management is strictly reserved for isolated, stable fractures—such as un-displaced medial malleolus fractures or isolated distal fibula fractures (Weber A or stable Weber B) where dynamic or gravity stress radiographs confirm an intact deep deltoid ligament and a symmetric medial clear space. In these select cases, functional bracing or short leg casting yields excellent long-term functional outcomes.

Operative intervention, typically via Open Reduction and Internal Fixation (ORIF), is absolutely indicated for any fracture pattern that disrupts the integrity of the mortise ring. This includes all bimalleolar and trimalleolar fractures, isolated lateral malleolus fractures with evidence of medial injury (deltoid ligament rupture manifesting as medial clear space widening >4mm), and fractures with syndesmotic instability. Open fractures, fracture-dislocations that are irreducible or unstable post-reduction, and fractures with associated vascular compromise mandate emergent surgical intervention. The presence of a posterior malleolus fracture involving >25% of the articular surface, or one that permits posterior talar subluxation, is a strong indication for posterior fixation.

Contraindications to immediate operative intervention are primarily dictated by the condition of the soft tissue envelope. The presence of severe fracture blisters, massive edema precluding a tension-free wound closure (negative "wrinkle test"), or active local skin infection requires a delay in definitive fixation. In such scenarios, the ankle must be temporarily stabilized in a well-padded splint or via a joint-spanning external fixator. Systemic contraindications include critically ill polytrauma patients who are hemodynamically unstable (damage control orthopedics applies here), non-ambulatory patients with minimal functional demands, and patients with severe peripheral vascular disease or profound peripheral neuropathy (e.g., Charcot arthropathy) where the risk of catastrophic surgical site infection or hardware failure outweighs the biomechanical benefit of anatomic reduction.

Pre-Operative Planning, Templating, and Patient Positioning

Thorough pre-operative clinical evaluation is the cornerstone of successful ankle fracture management. Patients typically present with a variable clinical picture, ranging from a painful limp to complete inability to bear weight, accompanied by significant swelling, ecchymosis, and visible deformity. Immediate priority must be given to documenting the neurovascular status, specifically assessing the dorsalis pedis and posterior tibial pulses, as well as the function of the superficial and deep peroneal, sural, saphenous, and tibial nerves. Any clinically evident ankle dislocation must be reduced and splinted immediately—often prior to formal radiographic evaluation—to relieve tension on the neurovascular bundle and prevent pressure necrosis of the skin and impaction injury to the talar dome cartilage.

Standard radiographic evaluation requires three orthogonal views: Anteroposterior (AP), Lateral, and Mortise. On the AP view, the tibiofibular overlap should be >10 mm (measured 1 cm proximal to the plafond); an overlap <10 mm implies syndesmotic injury. The tibiofibular clear space should be <5 mm. Talar tilt is assessed by comparing the width of the medial and lateral aspects of the superior joint space; a difference >2 mm is abnormal. The Lateral view is critical for ensuring the talar dome is concentrically reduced under the tibial plafond, assessing the size and displacement of the posterior malleolus, and identifying anterior or posterior translation of the fibula.

Advanced Imaging and Stress Radiography

The Mortise view, obtained with the foot in 15 to 20 degrees of internal rotation to offset the intermalleolar axis, is the most sensitive plain radiograph for mortise symmetry. A medial clear space >4 to 5 mm indicates lateral talar shift and deep deltoid compromise. The talocrural angle—subtended between the intermalleolar line and a line parallel to the distal tibial articular surface—should measure between 8 and 15 degrees and match the contralateral uninjured side within 2 to 3 degrees. In cases of isolated fibula fractures with an ambiguous medial side, a physician-assisted external rotation stress view, or a gravity stress view, is mandated to unmask occult deltoid incompetence.

Computed tomography (CT) has become increasingly standard in pre-operative planning, particularly for trimalleolar fractures or those with suspected articular impaction (die-punch fragments). CT elegantly delineates the morphology of the posterior malleolus and identifies occult fragments of the Tillaux-Chaput or Volkmann tubercles. Magnetic resonance imaging (MRI), while rarely indicated in the acute trauma setting for standard rotational fractures, may be utilized in subacute presentations to assess occult osteochondral lesions of the talus, isolated syndesmotic sprains, or complex tendinous pathology.

Patient positioning is dictated by the fracture pattern. Most bimalleolar fractures are treated in the supine position with a bump under the ipsilateral hip to internally rotate the leg, bringing the lateral malleolus anteriorly. A tourniquet is placed on the proximal thigh. For trimalleolar fractures requiring direct posterior fixation, the patient is often positioned prone or in the lateral decubitus position, allowing simultaneous access to the posterolateral and posteromedial aspects of the ankle. Fluoroscopy must be positioned to allow unrestricted orthogonal views of the mortise throughout the procedure.

Step-by-Step Surgical Approach and Fixation Technique

Surgical reconstruction typically begins with the lateral malleolus, as restoring the length, alignment, and rotation of the fibula is the critical first step in re-establishing the lateral column of the mortise. A longitudinal incision is made directly over or slightly posterior to the fibula. Meticulous dissection is required to protect the superficial peroneal nerve, which crosses the surgical field anteriorly in the distal third of the leg, and the sural nerve posterolaterally. The fracture site is exposed, hematoma evacuated, and anatomic reduction achieved using reduction forceps. For oblique or spiral fractures (Weber B), interfragmentary lag screw fixation followed by a lateral neutralization plate is the gold standard. In osteoporotic bone, or for severely comminuted fractures, a locking plate or a posterolateral antiglide plate may be utilized to enhance biomechanical stability and prevent screw pull-out.

Following fibular stabilization, attention is directed to the medial malleolus. A longitudinal or slightly curved incision is made over the medial malleolus, taking great care to identify and protect the great saphenous vein and the saphenous nerve. The periosteum is incised, and the fracture site is cleared of interposed tissue, which frequently includes inverted periosteum or fibers of the deltoid ligament. Anatomic reduction is secured with a pointed reduction clamp. Fixation is typically achieved using two partially threaded 4.0 mm cancellous lag screws directed perpendicular to the fracture line. In cases of small avulsion fragments or severe comminution where screws might fragment the bone, a tension band construct using Kirschner wires and a figure-of-eight stainless steel wire provides excellent dynamic compression.

Posterior Malleolus and Syndesmotic Fixation

If a posterior malleolus fracture requires fixation, a posterolateral approach is highly effective. The interval between the peroneal tendons and the flexor hallucis longus (FHL) is developed. The posterior tibial fragment is directly visualized, reduced, and held with provisional K-wires. Definitive fixation is achieved with posterior-to-anterior lag screws or a posterior buttress plate. Direct posterior plating is biomechanically superior to anterior-to-posterior lag screws and allows for direct visualization of the articular reduction and the posterior inferior tibiofibular ligament (PITFL) attachment.

The final and arguably most critical step is the intraoperative assessment of the syndesmosis. Even after anatomic bimalleolar fixation, the syndesmosis must be rigorously tested using the "Cotton test" (lateral traction applied to the fibula with a bone hook under live fluoroscopy) or an external rotation stress test. If widening of the tibiofibular clear space is observed, syndesmotic fixation is mandatory. Reduction is achieved with a large pelvic reduction clamp placed across the medial and lateral malleoli, ensuring the foot is held in neutral dorsiflexion to prevent over-constriction of the anteriorly wider talar dome. Fixation is accomplished using one or two trans-syndesmotic position screws (3.5 mm or 4.5 mm) engaging three or four cortices, or via flexible suture-button constructs. Suture buttons offer the advantage of physiologic micro-motion and eliminate the need for routine hardware removal, a common requirement for rigid syndesmotic screws prior to full weight-bearing.
