Unraveling Orthopaedic Infections and Osteomyelitis: History & Treatment

Comprehensive Introduction and Patho-Epidemiology

The Historical Evolution of Orthopaedic Infection Management

The management of orthopaedic infections and osteomyelitis represents one of the most profound evolutionary arcs in the history of surgical science. The earliest documented descriptions of osseous and soft tissue infections date back to early Sumerian carvings, an era when the foundational tenets of treatment were strictly limited to rudimentary irrigation, immobilization, and bandaging. During these nascent periods of medical history, the practice of wound care and infection management was essentially an art form devoid of rigorous scientific application. Early therapeutic interventions utilized a myriad of topical agents, including honey, wine, and even donkey feces, driven by empirical observation rather than microbiological understanding.

A prevailing philosophy of the ancient medical world, heavily propagated by the influential writings of Galen of Pergamum (120–201 A.D.), was the concept of "laudable pus." Dominant personalities of the era exerted a monolithic influence over medical practice, and the erroneous belief in the therapeutic value of purulence persisted for centuries. It was not until the latter third of the second millennium that the purported value of purulence was systematically challenged. Over the past three centuries, the treatment paradigm for infection predominantly involved the application of local ointments or salves, coupled with the intentional maintenance of an open wound to facilitate the egress of purulent exudate.

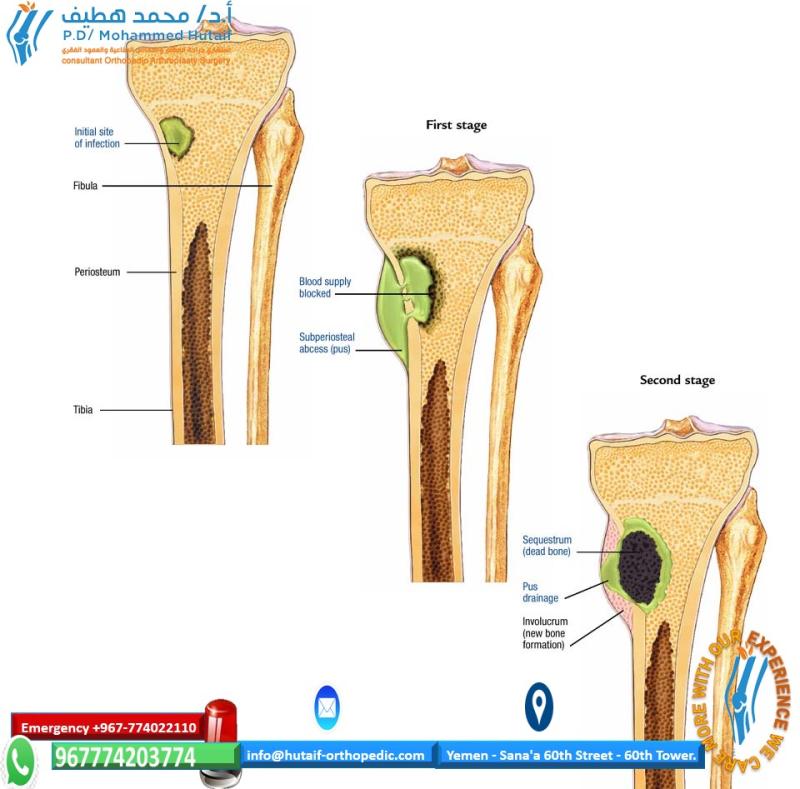

During this period, critical terminology was adopted into the medical lexicon that remains foundational to orthopaedic pathology today. A sequestrum was defined as “a fragment of dead bone separated from the body,” derived from the Latin words sequester (meaning “depositary”) and sequestrate (meaning “to give up for safe keeping”). Clinically, it describes a detached, devascularized piece of bone lying within a necrotic cavity. Conversely, the term involucrum, derived from the Latin word for “enveloping sheath or envelope,” was established to describe the robust, reactive periosteal new bone formation resulting from the host’s inflammatory response attempting to encapsulate and isolate the sequestrum. The natural history of osteomyelitis was historically viewed as this slow, agonizing process of isolating infective material followed by an attempted, often futile, resorption by the innate immune system. The specific term osteomyelitis, however, was not formally coined until the mid-1800s by Auguste Nélaton.

The Dawn of Anesthesia, Antisepsis, and Antibiotics

In his seminal text, The Story of Orthopaedics, Mercer Rang elegantly delineates the three pivotal discoveries that catalyzed the success and modernization of orthopaedic surgery: anesthesia, antisepsis, and radiography. Prior to the advent of anesthesia, operative procedures, including early sequestrectomies (illustrated as early as 1593 by Scultetus), were barbaric endeavors performed under forced immobility and profound inebriation. Operating theaters were initially created to isolate the horrifying screams of surgical patients from the general wards. The serendipitous discovery of ether—initially utilized recreationally—culminated in its first successful anesthetic application by William T. G. Morton at Massachusetts General Hospital in 1846. While anesthesia made surgery tolerable and incentivized operative intervention, the subsequent surge in surgical volume paradoxically increased morbidity and mortality due to rampant postoperative sepsis.

The parallel development of antisepsis was equally arduous. Ignaz Semmelweis demonstrated in 1848 that meticulous handwashing between obstetric deliveries plummeted maternal mortality from 18% to approximately 1%. Building upon Louis Pasteur’s foundational work on fermentation and tissue putrefaction, Joseph Lister developed carbolic acid antisepsis, reducing amputation mortality from 43% in untreated cohorts to 15%. Despite these monumental breakthroughs, the surgical establishment fiercely resisted these concepts for decades.

The advent of antimicrobial therapy mirrored this serendipity. While Alexander Fleming discovered penicillin in 1928, its profound clinical efficacy against streptococci was not fully realized until the subsequent rigorous pursuits of Howard Florey and Ernst Chain. The mid-20th century finally witnessed the integration of controlled surgical environments, aseptic techniques, and targeted antibiotics. However, as modern trauma surgery—often advanced by the brutal necessity of war, where extremity injuries account for 65% of casualties—continues to evolve, the complex symbiosis between human hosts and bacterial pathogens remains a formidable challenge.

The Human Microbiome: Colonization Versus Infection

To effectively treat orthopaedic infections, the modern surgeon must possess a profound understanding of the interdependence between human physiology and bacterial flora. The human organism is a superorganism; while composed of approximately 100 trillion human cells, we harbor an estimated 1,000 trillion bacteria. Normal flora exists in staggering abundance: an individual’s skin can host up to 180 different bacterial species simultaneously, with up to 10 colony-forming units (CFUs) residing in the oral cavity and perineum, and nearly 95% of hand flora sequestered beneath the fingernails.

Our systemic circulation is constantly subjected to transient bacteremia from micro-abrasions, mucosal translocation, and other vectors. In an immunocompetent host, these incursions are rapidly eradicated by robust host defense mechanisms. Pathogenesis occurs when local or systemic homeostasis is disrupted—often by trauma, ischemia, or surgical intervention—providing an opportunistic window for external contaminants or commensal flora to become pathogenic. Crucially, colonization necessarily precedes infection, but the mere presence of bacteria does not constitute clinical infection. This paradigm is starkly highlighted by literature demonstrating that up to 50% of cultures obtained during routine, asymptomatic orthopaedic hardware removal yield positive bacterial growth. Differentiating benign colonization from invasive infection is the cornerstone of effective prophylaxis, definitive treatment, and the optimization of surgical outcomes.

Detailed Surgical Anatomy and Pathophysiology of Bone Infection

The Microvascular Anatomy of Osteomyelitis

The pathophysiology of osteomyelitis is inextricably linked to the microvascular anatomy of bone. The diaphyseal cortex is supplied by the nutrient artery system, which branches into the Haversian and Volkmann canals. In the setting of acute trauma or hematogenous seeding, bacterial pathogens lodge within these microvascular networks. The resultant acute inflammatory response leads to localized edema, increased intraosseous pressure, and subsequent vascular thrombosis. This ischemic cascade is the primary driver of bone necrosis, leading to the formation of the aforementioned sequestrum.

In post-traumatic osteomyelitis, the "zone of injury" extends far beyond the macroscopic fracture lines. High-energy trauma disrupts the periosteal and endosteal blood supply, creating a hypoxic, acidic environment that severely impairs the efficacy of polymorphonuclear leukocytes and macrophages. This devascularized milieu not only serves as an ideal nidus for bacterial proliferation but also acts as a physical barrier, preventing systemic antibiotics from reaching therapeutic minimal inhibitory concentrations (MIC) at the site of infection.

Biofilm Formation and Bacterial Evasion

The hallmark of chronic orthopaedic infection, particularly in the presence of orthopaedic implants or necrotic bone, is the formation of a bacterial biofilm. Planktonic (free-floating) bacteria adhere to non-viable surfaces and undergo a phenotypic shift, transitioning into a sessile state. These sessile colonies secrete an extracellular polymeric substance (EPS)—a robust glycocalyx that encapsulates the bacteria.

This biofilm confers extraordinary resistance to both host immune responses and exogenous antimicrobial agents. Bacteria residing deep within the biofilm exhibit a lower metabolic rate, rendering bactericidal antibiotics that target cell wall synthesis (such as beta-lactams) largely ineffective. The eradication of biofilm-mediated osteomyelitis therefore mandates mechanical disruption—radical surgical debridement—as pharmacological therapy alone is categorically insufficient.

Classification Systems and Indications for Surgical Intervention

Historical Classification Frameworks

The categorization of osteomyelitis has evolved significantly to guide surgical decision-making. Historically, the disease was simply bifurcated into acute or chronic based on symptom duration. Over time, more nuanced systems emerged:
* Kelly Classification: Documented by Kelly, this system was based on etiology. Type I was hematogenous; Type II was associated with fracture union; Type III was without fracture union; and Type IV was postoperative or post-traumatic without a fracture.
* Weiland Classification (1984): Focused on the nature of bony involvement. Type I featured open exposed bone with soft tissue infection but no osseous infection. Type II involved circumferential cortical and endosteal infection. Type III featured cortical and endosteal infection associated with a segmental bony defect.
* May Classification (1989): Centered on tibial osteomyelitis and the reconstructive requirements post-debridement. Type I had intact tibia/fibula capable of functional loading. Type II required bone grafting. Type III had a tibial defect <6 cm requiring cancellous grafting or distraction osteogenesis. Type IV involved a defect >6 cm requiring complex reconstruction (vascularized graft/bone transport). Type V lacked an intact fibula with a >6 cm defect, often necessitating amputation.
* Waldvogel Classification: Categorized based on primary etiology—hematogenous, contiguous (from an open fracture or seeded implant), or chronic (longstanding infection with mature host reaction).

The Cierny-Mader Classification: The Modern Gold Standard

The currently accepted, universally applied framework is the Cierny-Mader classification. Its profound clinical utility stems from its dual evaluation of both the anatomical bone lesion and the physiologic status of the host. Cierny’s approach fundamentally revolutionized infection management by applying oncologic principles to osteomyelitis—treating the infection as a benign but highly locally aggressive tumor that requires complete marginal excision to prevent recurrence.

Host Classification:
* A Host: Normal physiologic and immune status with a healthy limb.
* B Host: Compromised host, further subdivided into:
* B-Systemic (Bs): Immunocompromise, malnutrition, diabetes mellitus, advanced age, chronic hypoxia, vascular disease, malignancy, or renal/hepatic failure.
* B-Local (Bl): Local tissue compromise such as previous radiation, extensive scarring, cellulitis, lymphedema, or severe zone-of-injury trauma.
* B-Systemic/Local (Bsl): Combined systemic and local compromise.
* C Host: A patient in whom the morbidity of the required curative treatment (e.g., radical resection, free tissue transfer) vastly outweighs the morbidity of the disease itself. These patients are candidates for suppressive therapy or primary amputation.

Anatomic Lesion Classification:
* Type I (Medullary): Endosteal infection without cortical penetration (e.g., infected intramedullary nail).
* Type II (Superficial): Outer cortical infection, typically contiguous with a soft tissue defect or pressure ulcer.
* Type III (Permeative/Localized): Cortical and medullary involvement that does not compromise the axial stability of the bone.
* Type IV (Segmental/Diffuse): Circumferential involvement leading to a loss of axial mechanical stability, requiring complex skeletal reconstruction post-debridement.

Indications and Contraindications

Pre-Operative Planning, Templating, and Patient Positioning

Host Optimization and Systemic Evaluation

The success of surgical intervention in osteomyelitis is directly proportional to the meticulousness of pre-operative host optimization. In accordance with the Cierny-Mader paradigm, converting a "B host" to an "A host" is paramount. This requires a multidisciplinary approach involving internal medicine, endocrinology, and infectious disease specialists. Strict glycemic control (HbA1c < 7.0%), smoking cessation (verified via serum cotinine levels), and aggressive nutritional supplementation (optimizing prealbumin and transferrin levels) are non-negotiable prerequisites for elective reconstructive cases.

Advanced Imaging and Pre-Operative Templating

Accurate delineation of the osseous and soft tissue involvement dictates the surgical margins. Standard orthogonal radiography is essential for evaluating hardware integrity, presence of sequestra, and gross structural stability. However, Magnetic Resonance Imaging (MRI) with and without intravenous gadolinium contrast remains the gold standard for mapping the proximal and distal extent of medullary edema and cortical destruction. In cases involving retained metallic hardware where MRI artifact is prohibitive, Positron Emission Tomography combined with Computed Tomography (18F-FDG PET/CT) or Indium-111 labeled leukocyte scans provide critical functional and anatomic localization of active infection.

Pre-operative templating must account for the anticipated skeletal defect following radical, oncologic-style debridement. The surgeon must plan for dead space management and skeletal stabilization. If a Type IV segmental defect is anticipated, the surgical team must prepare for either acute shortening, application of an Ilizarov circular external fixator for distraction osteogenesis, or the first stage of the Masquelet induced-membrane technique utilizing an antibiotic-impregnated polymethylmethacrylate (PMMA) spacer.

Patient Positioning and Operating Room Setup

Patient positioning must facilitate extensive, unhindered access to both the primary zone of infection and potential donor sites for autologous bone grafting (e.g., anterior/posterior iliac crest, Reamer-Irrigator-Aspirator of the femur) or soft tissue flaps. A radiolucent operating table is mandatory to allow for unimpeded intraoperative fluoroscopy. The use of a sterile tourniquet is recommended to minimize blood loss during the initial exposure, but it must be deflated prior to the final debridement to accurately assess the viability and bleeding of the cortical margins—the critical "paprika sign."

Step-by-Step Surgical Approach and Fixation Technique

The Oncologic Debridement Paradigm

The surgical management of osteomyelitis demands a ruthless, oncologic approach. The objective is the complete extirpation of all necrotic, infected, and avascular bone and soft tissue. The incision should incorporate previous surgical scars when possible, extending proximally and distally into healthy, uncompromised tissue. Full-thickness fasciocutaneous flaps must be elevated to preserve the delicate subdermal plexus.

Once the bone is exposed, all loose hardware must be extracted. The biofilm-laden implant is often the primary nidus of recalcitrant infection. Debridement of the bone is performed using sharp osteotomes, high-speed burrs with continuous saline irrigation (to prevent thermal necrosis), and rongeurs. The cortex is resected until uniform, punctate cortical bleeding is observed—the so-called "paprika sign," indicating viable, perfused osseous tissue. The medullary canal is aggressively reamed or curetted to remove all endosteal debris.

Dead Space Management and Local Antibiotic Delivery

Following radical resection, the resulting dead space must be meticulously managed to prevent hematoma formation, which serves as a rich culture medium for residual microscopic bacteria. The current standard of care involves the obliteration of this space with antibiotic-loaded carriers. Polymethylmethacrylate (PMMA) cement, impregnated with heat-stable, broad-spectrum antibiotics (typically Tobramycin and Vancomycin), is molded into beads or block spacers. This provides a dual benefit: it physically occupies the dead space and delivers massive local concentrations of antibiotics—often exceeding the MIC by a factor of 100—without inducing systemic toxicity.

In cases of Type IV segmental defects, a robust PMMA spacer is utilized as the first stage of the Masquelet technique. Over the ensuing 6 to 8 weeks, a highly vascularized, biologically active pseudo-membrane forms around the spacer, which will subsequently serve as a bioreactor for massive autologous cancellous bone grafting during the second stage of reconstruction.

Skeletal Stabilization and Soft Tissue Coverage

Mechanical stability is a prerequisite for infection eradication and bone healing. Unstable environments perpetuate inflammation and impede neoangiogenesis. For Type III and IV Cierny-Mader lesions, rigid stabilization is required. While internal fixation (plates and screws) can be utilized in clean, optimized beds following initial debridement, external fixation remains the workhorse of osteomyelitis surgery. Multiplanar circular frames (Ilizarov or Taylor Spatial Frames) provide exceptional biomechanical stability, allow for full weight-bearing, and facilitate complex reconstructive maneuvers such as bone transport to bridge massive intercalary defects.

Simultaneously, adequate soft tissue coverage is paramount. Exposed bone or tendon will inevitably undergo desiccation and subsequent necrosis. Collaboration with plastic and reconstructive surgery is often essential. Local rotational flaps (e.g., gastrocnemius or soleus flaps for the proximal and middle thirds of the tibia) or microvascular free tissue transfer (e.g., anterolateral thigh or latissimus dorsi free flaps for the distal third of the tibia) must be executed within the first 5 to 7 days following the index debridement to ensure a robust, vascularized envelope over the reconstructed bone.

Complications, Incidence Rates, and Salvage Management

Anticipating and Managing Surgical Failures

Despite meticulous surgical technique and targeted antimicrobial therapy, the treatment of osteomyelitis carries a high complication profile. The complex nature of post-traumatic infections, combined with compromised host physiology, makes recurrence a persistent threat. Recurrence rates vary significantly based on the Cierny-Mader host classification, ranging from less than 5% in optimized A hosts to over 30% in severely compromised Bsl hosts.

Failure to achieve adequate debridement is the most common etiology of recurrent infection. Inadequate resection leaves residual biofilm and devascularized sequestra, leading to inevitable recrudescence of the disease, often complicated by the emergence of multi-drug resistant organisms (MDROs). Additionally, the prolonged use of systemic antibiotics carries inherent risks, including nephrotoxicity, hepatotoxicity, and opportunistic infections such as Clostridioides difficile colitis.

Salvage Management and Amputation

When reconstructive efforts fail, or when the physiologic toll of repeated surgical interventions becomes insurmountable, salvage management must be instituted. In the Cierny-Mader C host, or in cases of intractable Type IV defects with failing soft tissue coverage, amputation is not a failure of care, but rather a definitive, life-saving reconstructive option. The level of amputation must be carefully selected to ensure primary wound healing, typically requiring transcutaneous oxygen tension (TcPO2) mapping or arterial Doppler studies.

Phased Post-Operative Rehabilitation Protocols

Phase I: Acute Post-Operative Period (Weeks 0-6)

The immediate post-operative phase is focused on the protection of the surgical reconstruction, management of acute pain, and the initiation of targeted antimicrobial therapy. Under the guidance of an Infectious Disease specialist, patients typically undergo a 4-to-6-week course of culture-directed intravenous antibiotics, often facilitated by a Peripherally Inserted Central Catheter (PICC).

Weight-bearing status is strictly dictated by the skeletal stability achieved intraoperatively. For localized Type I or II lesions, immediate weight-bearing as tolerated may be permissible. However, for Type III and IV lesions managed with external fixation or massive grafting, strict non-weight-bearing status is enforced. Physical therapy is initiated immediately to maintain active and passive range of motion in adjacent, uninvolved joints to prevent contractures.

Phase II: Intermediate Healing and Soft Tissue Maturation (Weeks 6-12)

As the soft tissue envelope matures and the initial systemic antibiotic course concludes, systemic inflammatory markers (CRP, ESR) are closely monitored to assess the eradication of infection. If a staged reconstruction (Masquelet technique) is planned, the second stage—removal of the PMMA spacer and massive autologous bone grafting—is typically performed between weeks 6 and 8.

During this phase, progressive weight-bearing may be initiated if radiographic evidence of consolidation is present, or if a rigid circular frame allows for axial loading to stimulate osteogenesis. Edema control via compressive garments is critical, particularly following local or free flap coverage.

Phase III: Long-Term Functional Restoration (Months 3-12+)

The final phase of rehabilitation is focused on the restoration of baseline functional capacity, muscular hypertrophy, and proprioceptive retraining. In cases of distraction osteogenesis or bone transport, this phase encompasses the prolonged consolidation period, which often requires 1 to 2 months of frame time for every centimeter of regenerated bone.

Hardware removal may be considered only after complete radiographic union and long-term clinical quiescence of the infection. Patients must be counseled that osteomyelitis, much like a benign tumor, carries a lifelong risk of recurrence, and any new onset of pain, erythema, or swelling warrants immediate orthopaedic evaluation.

Summary of Landmark Literature and Clinical Guidelines

The modern management of orthopaedic infections is built upon a foundation of historical breakthroughs and rigorous clinical validation. The serendipitous discovery of ether by William T. G. Morton in 1846 and the subsequent pioneering of antisepsis by Ignaz Semmelweis and Joseph Lister catalyzed the transition of surgery from a desperate, high-mortality endeavor to a controlled, scientific discipline. Lister’s application of carbolic acid, which dramatically reduced amputation mortality, remains one of the most pivotal paradigm shifts in surgical history.

The pharmacological revolution, spearheaded by Alexander Fleming’s discovery of penicillin in 1928 and its clinical realization by Florey and Chain, provided the first systemic weapon against bacterial pathogens. However, the contemporary understanding that antibiotics alone cannot eradicate biofilm-mediated bone infection stems from decades of subsequent clinical observation.

The most critical modern landmark in the literature is the validation of the Cierny-Mader classification system (Cierny et al., 1985). This framework fundamentally shifted the focus from purely anatomic descriptions to a holistic evaluation of host physiology. The outcome data reported by Cierny conclusively demonstrated that once appropriate, oncologic-level surgical debridement is undertaken, the physiologic status of the host is the single most important variable dictating treatment success and long-term outcomes. Today, these principles remain the bedrock of clinical guidelines, ensuring that orthopaedic surgeons approach osteomyelitis with the necessary respect, rigor, and multidisciplinary collaboration required to salvage limbs and restore function.
