Nailing of the Proximal Femur: Avoid Surgical Complications

Comprehensive Introduction and Patho-Epidemiology

The proximal femur represents a critical anatomical junction subjected to immense biomechanical forces, and fractures in this region pose a profound challenge to the orthopedic surgeon. Fractures of the proximal femur are traditionally classified into four distinct major types, reflecting the profound differences in both the anatomic and physiologic character of these regions: femoral head fractures, intracapsular femoral neck fractures, pertrochanteric fractures (encompassing the proximal extracapsular region from the extracapsular femoral neck to the lesser trochanter before the medullary canal's development), and subtrochanteric fractures. While certain stable fracture patterns can be managed with minimal surgical morbidity, unstable configurations carry the potential for devastating, long-term consequences if not meticulously addressed. Cephalomedullary nailing has emerged as the gold-standard surgical intervention for a vast majority of these injuries, particularly unstable extracapsular patterns. By relying on an intramedullary load-sharing construct, this technique significantly reduces the need for extensile surgical approaches, thereby mitigating the long-term complications historically associated with massive soft tissue stripping and extramedullary plating systems.

The pathogenesis of proximal femur fractures demonstrates a classic bimodal epidemiological distribution, strictly dictated by the mechanism of injury and the patient's baseline bone mineral density. The overwhelming majority of these fractures occur in the geriatric population (typically aged 50 to 80 years and older) as a result of low-energy, same-level falls. In this demographic, the pathogenesis is inextricably linked to senile or post-menopausal osteoporosis, compounded by sarcopenia, muscular atrophy, and diminished proprioceptive reflexes. Conversely, high-energy trauma is the predominant etiology in the younger demographic (18 to 45 years of age). These injuries are typically the sequelae of motor vehicle collisions, motorcycle accidents, or falls from significant heights, resulting in fracture patterns characterized by profound displacement, severe comminution, and catastrophic soft tissue envelopes. Furthermore, the orthopedic surgeon must maintain a high index of suspicion for pathologic fractures, which often serve as the initial clinical presentation of an insidious neoplastic process, such as metastatic breast, prostate, lung, thyroid, or renal cell carcinoma.

The natural history of displaced, nonoperatively treated proximal femur fractures is unacceptably grim. To offer the patient any realistic hope of ambulatory recovery and a return to pre-injury functional status, surgical stabilization is absolutely mandatory for complete fractures. The resulting mechanical deformity of a nonoperatively treated hip invariably progresses to significant shortening, profound varus collapse, and external rotation deformity, rendering the limb mechanically useless. Furthermore, the systemic consequences of prolonged immobilization in the geriatric population are catastrophic. The American Academy of Orthopaedic Surgeons (AAOS) and multiple epidemiological registries estimate a staggering 24% to 30% mortality rate in patients older than 50 within the first year following a hip fracture. Even with contemporary surgical interventions, functional recovery can be compromised; historical data suggests that only 25% of geriatric patients make a full recovery to their precise pre-injury baseline of independence.

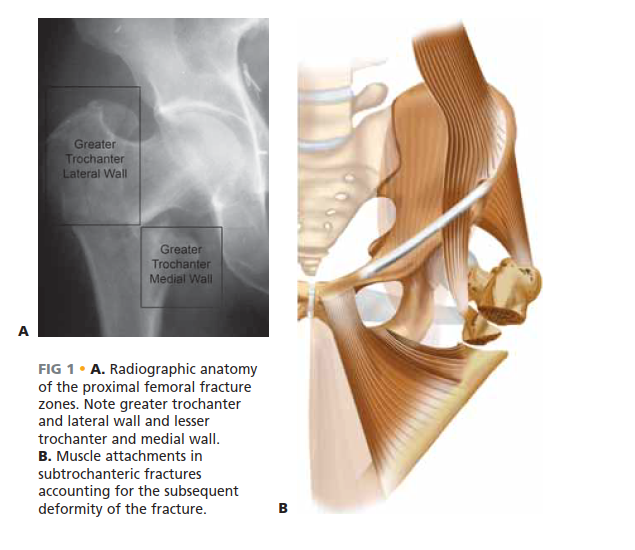

Radiographic anatomy of the proximal femoral fracture zones. Note the greater trochanter and lateral wall, as well as the lesser trochanter and medial wall. Muscle attachments in subtrochanteric fractures account for the subsequent predictable deformity.

Cephalomedullary nailing addresses these grim statistics by providing a biomechanically superior, minimally invasive stabilization method. The definition of cephalomedullary nailing encompasses the surgical stabilization of a proximal femur fracture utilizing an intramedullary device, typically inserted through a proximal trajectory via the piriformis fossa, the tip of the greater trochanter, or the medial aspect of the greater trochanter. The cephalic (or femoral head) portion of this fixation construct consists of one or more robust lag screws or helical blade devices that interlock seamlessly with the intramedullary nail component. This creates a fixed-angle, load-sharing device that allows for controlled impaction at the fracture site while resisting the massive varus-producing forces of the hip joint. Although there is occasional overlap between fracture regions, the "personality" of the fracture will predominantly dictate the specific implant choice and surgical approach required to achieve stable, durable fixation.

Detailed Surgical Anatomy and Biomechanics

The transitional anatomy from the spherical femoral head down to the tubular subtrochanteric region affords drastically different fracture pathogeneses, which directly dictate the surgical opportunity for repair. Intracapsular fractures of the femoral neck are critically dependent on the precarious vascular supply derived primarily from the medial femoral circumflex artery (MFCA). The lateral epiphyseal branches of the MFCA traverse the posterosuperior aspect of the femoral neck; disruption of these vessels during displacement or iatrogenically during surgical approach severely compromises fracture repair and the maintenance of femoral head vascularity, leading to a high risk of ischemic avascular necrosis (AVN) and nonunion. Therefore, intracapsular fractures demand either precise anatomic reduction and stable internal fixation or arthroplasty, depending on the patient's physiological age and demands.

Conversely, the extracapsular pertrochanteric region benefits from a robust, redundant vascular supply and is structurally dependent on the integrity of an essentially solid cancellous bone block. This region spans from the trabecular network of the triangle of Ward down to the lesser trochanter, where the solid cancellous architecture abruptly transitions into the thick cortical bone of the tubular femoral diaphysis. The calcar femorale, a dense vertical plate of bone originating posteromedially, serves as a critical strut for load transfer. When a fracture disrupts this pertrochanteric region, the highly vascularized cancellous bone typically heals robustly if provided with adequate mechanical stability. However, the loss of the posteromedial calcar support or the lateral wall integrity dramatically alters the biomechanical stability of the region, necessitating implants like cephalomedullary nails that can bypass the zone of comminution and transfer loads directly to the intact distal diaphysis.

The subtrochanteric region, defined as the segment extending up to 5 centimeters distal to the lesser trochanter, incurs the highest mechanical stresses in the entire human skeleton. Owing to its tubular cortical anatomy and the massive bending moments generated by the body's center of gravity acting on the femoral head, the medial cortex is subjected to extreme compressive forces, while the lateral cortex experiences massive tensile forces. Fractures in this zone place exceptionally high degrees of stress on any implants used for their fixation. Extramedullary plates placed on the tension-sided lateral cortex are highly susceptible to fatigue failure if the medial cortical buttress is not anatomically restored. Cephalomedullary nails, by virtue of their intramedullary position, reside closer to the mechanical axis of the femur, drastically reducing the bending moment on the implant and providing a biomechanically superior load-sharing construct.

The muscular attachments of the proximal femur are the absolute key determinants in the deforming forces associated with fracture displacement, and understanding these vectors is paramount for achieving closed reduction. The gluteus medius and minimus, inserting onto the lateral and superior aspects of the greater trochanter, exert a powerful abducting force on the proximal fragment. The iliopsoas, inserting onto the lesser trochanter, acts as a potent flexor and external rotator. In subtrochanteric fractures, these forces predictably result in the proximal fragment being forcefully abducted, flexed, and externally rotated. Simultaneously, the massive adductor musculature attached to the distal fragment pulls the femoral shaft medially and proximally, creating the classic varus and shortened deformity. Overcoming these massive, unopposed muscular forces requires profound neuromuscular blockade and strategic use of traction, percutaneous joysticks, or collinear reduction clamps prior to the insertion of the intramedullary device.

Exhaustive Indications and Contraindications

The indications for cephalomedullary nailing have expanded significantly over the past two decades, largely supplanting extramedullary sliding hip screws (SHS) for unstable fracture patterns. The primary, undisputed indications for a cephalomedullary nail include unstable pertrochanteric fractures, reverse obliquity intertrochanteric fractures, and subtrochanteric fractures. Unstable pertrochanteric fractures are characterized by the loss of the posteromedial buttress (large lesser trochanteric fragment), subtrochanteric extension, or, critically, the loss of lateral wall integrity. The lateral wall is essential for providing a lateral buttress for the proximal fragment; when fractured or excessively thin (less than 20.5 mm), an extramedullary SHS allows the proximal fragment to slide laterally, resulting in massive varus collapse and medialization of the femoral shaft. Cephalomedullary nails inherently bypass the lateral wall, providing a rigid intramedullary buttress that prevents this catastrophic collapse.

Reverse obliquity fractures (AO/OTA 31-A3) represent a unique biomechanical challenge where the primary fracture line extends from proximal-medial to distal-lateral. This geometry renders the fracture inherently unstable to axial loading, as the proximal fragment tends to slide laterally and distally along the fracture plane. Extramedullary devices are strictly contraindicated in reverse obliquity patterns, as they fail to resist this lateral translation and frequently result in implant cut-out or catastrophic plate pull-off. Cephalomedullary nailing is the absolute treatment of choice, as the intramedullary position of the nail blocks the lateral translation of the proximal fragment, converting shear forces into compressive forces that promote fracture healing. Similarly, subtrochanteric fractures require the load-sharing biomechanics of a long cephalomedullary nail to span the zone of comminution and provide durable fixation until cortical union is achieved.

Relative indications and areas of ongoing academic debate include stable, two-part intertrochanteric fractures (AO/OTA 31-A1). While a traditional SHS provides excellent clinical results with lower implant costs for these stable patterns, many modern orthopedic surgeons prefer the use of a short cephalomedullary nail due to its minimally invasive insertion technique, reduced blood loss, and shorter operative times. However, the surgeon must weigh these benefits against the risks of iatrogenic lateral wall blowout during nail insertion and the potential for anterior thigh pain. Basicervical fractures, which occur at the extracapsular base of the femoral neck, also occupy a gray area; they possess high shear forces similar to intracapsular fractures but lack the robust cancellous healing potential of intertrochanteric fractures. A cephalomedullary nail with a robust derotational component (either dual screws or a helical blade) is often preferred to resist the high rotational instability inherent to basicervical patterns.

Contraindications to cephalomedullary nailing must be strictly respected to avoid devastating complications. Absolute contraindications include active local or systemic infection, which precludes the insertion of any massive intramedullary hardware. Patients with profound, unresolvable medical comorbidities who are actively dying (expected lifespan of less than 6 weeks) should be managed with compassionate nonoperative care, focusing on pain control and palliative positioning. Nonoperative treatment is also frequently the best option in chronically non-ambulatory, bedbound patients with severe dementia, provided their pain can be managed with rest and analgesics. Mechanical contraindications include a fundamentally obliterated medullary canal (e.g., severe Paget's disease, osteopetrosis, or retained distal hardware) that physically precludes the passage of an intramedullary reamer or nail.

Pre-Operative Planning, Templating, and Patient Positioning

Preoperative planning begins with a meticulous patient history and physical examination, which provides vital insight into the mechanism of injury, the potential quality of the host bone, and the presence of associated injuries. In high-energy trauma, a comprehensive Advanced Trauma Life Support (ATLS) evaluation is mandatory. The physical findings of a displaced proximal femur fracture are classically characterized by profound shortening of the extremity, an external rotational deformity compared to the contralateral limb, and severe pain or crepitance with any attempted motion at the hip. Shortening and rotational deformity are the direct result of varus collapse at the hip from unopposed muscular pull, or the complete telescoping of 100% displaced fracture fragments. The examination should also include the Lippmann test (auscultation of the patella while percussing the pubic symphysis); a decreased tone or pitch implies a fracture, as sound conduction through the osseous pelvis and femur is interrupted by the discontinuity.

Standard imaging must include a high-quality anteroposterior (AP) view of the pelvis, an AP view of the affected hip, and a cross-table lateral view. Cross-table lateral radiographs, or films taken under gentle manual traction, are exceptionally useful if the hip fracture pattern is complex or obscured by massive displacement. Hip fractures are highly three-dimensional entities, a fact that becomes readily apparent in high-energy trauma cases. If a long intramedullary nail is under consideration, full-length AP and lateral radiographs of the affected femur down to the knee joint are absolutely required. This ensures the surgeon evaluates the full extent of the damage, estimates the necessary length and diameter of the implant, and avoids the catastrophic neglect of skip lesions, segmental damage, or excessive anterior bowing of the distal femur. While CT or MRI scans are rarely required for obviously displaced fractures, they are invaluable for diagnosing radiographically occult fractures, evaluating atypical subtrochanteric fractures, or assessing pathologic lesions (where a PET scan may also be indicated).

Templating is a critical, non-negotiable step in the preoperative phase. Determination of the preoperative neck-shaft angle (typically 125 to 135 degrees) and the medullary canal diameter at the isthmus is paramount to the selection of the correct nail device. Different manufacturers produce nails with varying neck-shaft angles, proximal diameters, and distal locking configurations. Another vital consideration is the nail's radius of curvature for long implants. Modern curved nails typically feature a 1.5- to 2.0-meter radius of curvature, which accommodates the anterior bow of most normal femurs. However, the surgeon must beware of patients with excessive anterior curvature or tertiary curves in the distal third of the femur. A mismatch between a relatively straight nail and a highly bowed femur will lead to anterior cortical impingement during insertion, potentially resulting in an iatrogenic distal femur fracture or anterior cortical penetration.

Estimate of nail length required from an intraoperative radiograph of the normal contralateral femur, utilizing the C-arm to ensure accurate implant selection.

Patient positioning is the final critical step before incision, and it dictates the ease of the entire operation. Most surgeons utilize a specialized fracture table, allowing for precise control of traction, internal rotation, and adduction/abduction. The patient is typically positioned supine, with the perineal post strategically placed against the operative side to allow for adduction of the torso, thereby clearing the trajectory for the proximal reamers and nail insertion. The unaffected leg is either placed in a well-leg holder (hemilithotomy position) or scissored posteriorly to allow unobstructed access for the fluoroscopic C-arm to swing between the AP and lateral planes. Achieving a perfect, anatomic closed reduction prior to prepping and draping is the single most important determinant of a successful outcome. If closed reduction on the fracture table fails to restore length, alignment, and rotation, the surgeon must be prepared to utilize percutaneous reduction aids or proceed to a formal open reduction.

Step-by-Step Surgical Approach and Fixation Technique

Closed Reduction Strategies

The fundamental axiom of cephalomedullary nailing is that the implant will only secure the reduction that the surgeon achieves; the nail itself is not a reduction tool. Therefore, exhaustive efforts must be made to achieve an anatomic or near-anatomic reduction prior to incision. Reduction begins with longitudinal traction to restore length, followed by internal rotation to correct the external rotation deformity and bring the femoral neck parallel to the floor (optimizing the lateral fluoroscopic view). In the coronal plane, varus deformity must be strictly avoided; a slight valgus over-reduction is biomechanically favorable. The reduction is assessed using the Garden Alignment Index, aiming for 160 degrees on the AP view and 180 degrees on the lateral view.

If closed manipulation via the fracture table is insufficient, percutaneous reduction techniques must be employed. A common scenario in subtrochanteric fractures involves the proximal fragment being flexed and abducted by the iliopsoas and gluteus medius. This can be countered by inserting a percutaneous Schanz pin or joystick into the anterior aspect of the proximal fragment to manually reduce the flexion and abduction. Alternatively, a ball-spiked pusher inserted through a small lateral stab incision can be used to push a laterally displaced proximal fragment medially. If the anterior cortex remains gapped on the lateral view, a collinear reduction clamp or a bone hook can be utilized to elevate the sagging distal fragment. Only when the reduction is deemed acceptable in both orthogonal planes should the surgeon proceed with the approach.

Entry Point Selection and Canal Preparation

The selection of the entry point is dictated by the specific implant design and the patient's anatomy, and it is the most critical technical step of the procedure. Cephalomedullary nails are designed for either a piriformis fossa entry or a greater trochanteric entry. The piriformis fossa lies perfectly collinear with the anatomical axis of the medullary canal in both the AP and lateral planes. However, accessing the piriformis fossa requires a more medial and proximal trajectory, which can be challenging in obese patients and carries a higher risk of iatrogenic damage to the medial femoral circumflex artery. Modern trochanteric entry nails are designed with a proximal lateral bend (typically 4 to 5 degrees) to accommodate an entry point at the exact tip or slightly medial to the tip of the greater trochanter.

Once the entry point is identified fluoroscopically, a 3- to 5-centimeter longitudinal incision is made proximal to the greater trochanter. The fascia lata and abductor musculature are split in line with their fibers to protect the superior gluteal nerve. A starting guidewire or awl is introduced, and its position is meticulously verified on both AP and lateral views. The entry point must be perfectly centered in the lateral plane; an anterior starting point will result in anterior cortical impingement during nail passage, while a posterior starting point risks blowout of the posterior cortex. Following rigid guidewire placement, the proximal femur is opened with a rigid entry reamer. For long nails, a ball-tipped guidewire is passed down to the physeal scar of the distal femur, and the canal is sequentially reamed to a diameter 1.0 to 1.5 millimeters larger than the selected nail diameter, ensuring low-pressure insertion.

Proximal and Distal Interlocking Fixation

Following the insertion of the cephalomedullary nail, attention turns to the critical cephalic fixation. The stability of the construct relies entirely on the precise placement of the lag screw or helical blade within the femoral head. The target zone is the inferior half of the femoral head on the AP radiograph and perfectly centered on the lateral radiograph. This "inferior-center" positioning allows the screw to rest on the dense primary compressive trabeculae of the calcar femorale, providing maximum resistance to varus collapse and cut-out. The surgeon utilizes the targeting guide to pass a threaded guidewire into the femoral head, stopping 5 millimeters short of the subchondral bone.

The concept of the Tip-Apex Distance (TAD), pioneered by Baumgaertner, is the most reliable predictor of lag screw cut-out. The TAD is the sum of the distance from the tip of the screw to the apex of the femoral head on both the AP and lateral radiographs, corrected for magnification. A TAD of less than 25 millimeters is strictly targeted to minimize the risk of mechanical failure. Once the guidewire is perfectly positioned, the lateral cortex is opened, the tract is reamed, and the lag screw or blade is inserted. The traction is then released, and the fracture is gently compressed either manually or via the implant's internal compression mechanism. Finally, distal interlocking screws are placed to control rotation and maintain length. For short nails, this is typically achieved via the proximal targeting jig; for long nails, a perfect circle freehand technique or an electromagnetic targeting system is utilized.

Complications, Incidence Rates, and Salvage Management

Despite advancements in implant design and surgical technique, complications following cephalomedullary nailing remain a significant concern, demanding vigilant intraoperative execution and postoperative monitoring. The most devastating mechanical complication is "cut-out" of the cephalic lag screw through the superior aspect of the femoral head. Cut-out occurs in approximately 2% to 6% of cases and is almost exclusively the result of poor surgical technique—specifically, a non-anatomic varus reduction or a Tip-Apex Distance exceeding 25 millimeters. When a fracture is left in varus, the bending moment on the implant increases exponentially, driving the screw superiorly through the osteoporotic cancellous bone. Salvage of a cut-out typically requires a complex conversion to a total hip arthroplasty, often utilizing a diaphyseal-fitting revision stem to bypass the compromised proximal bone stock.

Another significant complication is the iatrogenic fracture of the lateral wall or the distal femur during nail insertion. Lateral wall blowout transforms a stable intertrochanteric fracture into a highly unstable reverse obliquity-type pattern. This is often caused by utilizing an excessively large entry reamer or selecting an entry point that is too lateral. Distal femur fractures, occurring in 1% to 3% of long nail insertions, are frequently the result of a mismatch between the nail's radius of curvature and the patient's anterior femoral bow. If the nail is driven forcefully into an impinged anterior cortex, the femur will fracture, or the nail will perforate anteriorly. Salvage requires immediate
