Introduction & Epidemiology

Patellar fractures constitute approximately 1% of all skeletal fractures, predominantly affecting active individuals and leading to significant morbidity if not managed optimally. These injuries often result from direct trauma or, more commonly, from indirect forces involving sudden, forceful quadriceps contraction against a semi-flexed knee, causing excessive tensile stress on the patella. Transverse patellar fractures are the most prevalent pattern, disrupting the crucial extensor mechanism of the knee and compromising ambulation and functional independence.

The modified Weber tension band wiring technique has long been established as the gold standard for stabilizing displaced transverse patellar fractures. Its success stems from its biomechanical principle: converting tensile forces acting on the anterior aspect of the patella during knee flexion into compressive forces at the fracture site, thus promoting bone healing and providing stable fixation. Despite its widespread acceptance and documented high union rates, a significant challenge persists, with reported early fracture displacement rates reaching up to 30%. This unacceptable incidence of displacement often necessitates reoperation, prolongs rehabilitation, and increases the risk of long-term complications such as stiffness, extensor lag, and post-traumatic arthritis.

The traditional approach involves the placement of two 1.8 mm Kirschner (K-) wires parallel and perpendicular to the fracture line, primarily to maintain reduction. The tension band wire is then anchored around these K-wires, typically positioned 5 mm anterior to the anterior cortical surface in the sagittal plane and running parallel to it. Variations in K-wire placement, however, are common in clinical practice, and these subtle differences can profoundly impact the biomechanical stability of the construct. The critical need for precise K-wire placement to enhance construct stability and mitigate early displacement underscores the importance of a comprehensive understanding of the underlying biomechanics. This academic review aims to delve into the intricacies of K-wire positioning within the modified tension band technique, presenting current research findings and practical guidance for optimizing outcomes and ultimately addressing the persistent challenge of early fracture displacement in patellar fractures.

Surgical Anatomy & Biomechanics

Surgical Anatomy of the Patella

The patella, the largest sesamoid bone in the body, is an integral component of the knee extensor mechanism, serving as a fulcrum for the quadriceps femoris muscle. It articulates with the trochlear groove of the femur, enhancing the mechanical advantage of the quadriceps by increasing the lever arm. Its anatomical structure includes:
* Anterior Surface: Rough, perforated for vascular supply and attachment of quadriceps tendon fibers.
* Posterior (Articular) Surface: Covered by thick hyaline cartilage, articulating with the femoral trochlea. Divided into medial and lateral facets, with a vertical ridge.
* Borders: Superior (base), inferior (apex), medial, and lateral.
* Vascular Supply: Predominantly from the genicular arterial anastomotic network, forming a peripatellar plexus. Preservation of this supply is vital for fracture healing.
* Soft Tissue Envelope: Enclosed within the quadriceps tendon proximally and the patellar ligament distally. The medial and lateral retinacula provide further stability and are crucial for dynamic knee function.

Biomechanics of Patellar Fractures and Tension Banding

The patella is subjected to immense forces during daily activities. During active knee flexion, the quadriceps muscle contracts, generating tensile forces that transmit through the patella to the patellar tendon. The magnitude of these forces can be several times body weight during activities like stair climbing or squatting. A transverse patellar fracture interrupts the continuity of this extensor mechanism, leading to significant displacement of the fragments due to the unopposed pull of the quadriceps.

The principle of tension band osteosynthesis is to convert tensile forces into compressive forces at the fracture site. This is achieved by placing a fixation device (typically a wire or strong suture) on the tension side of the bone, which in the patella's case is the anterior surface. When the knee flexes and the quadriceps contracts, the tension band material resists distraction of the anterior patellar fragments. The K-wires, acting as intramedullary splints, prevent shear and rotation, and provide an anchor point for the tension band.

Key biomechanical considerations for the tension band construct include:
* K-wire Placement:
* Intramedullary Positioning: The K-wires must be placed bicortically, engaging both proximal and distal fragments, and exiting the distal pole of the patella. This provides axial stability and prevents fragment rotation.
* Sagittal Plane Positioning: The K-wires are traditionally placed approximately 5 mm anterior to the posterior cortex and parallel to the anterior cortical surface. The seed content specifically notes "导线在前皮质表面下5 mm处进入，并在矢状面上与前皮质平行" (The wires enter 5mm below the anterior cortical surface and run parallel to the anterior cortex in the sagittal plane). This positioning aims to maximize the lever arm for the tension band effect without excessively protruding anteriorly.
* Coronal Plane Positioning: The seed content highlights the conventional method where "两根克氏针将髌骨纵向分成三份" (Two K-wires divide the patella longitudinally into thirds). However, it also emphasizes that "张力带的生物力学稳定性可能会发生显著改变" (the biomechanical stability of the tension band may change significantly) with variations in pin placement. The study described in the seed investigates different coronal and sagittal positions (anterior-medial, anterior-central, anterior-lateral, posterior-medial, posterior-central, posterior-lateral) to determine optimal biomechanical strength.
* Pin Size: The 1.8 mm K-wires mentioned in the seed content are standard. Smaller wires may offer insufficient rigidity, while larger wires could increase the risk of fracture or devitalization.
* Tension Band Material and Configuration:
* Wire vs. Suture: Historically, stainless steel wire has been used. However, strong non-absorbable sutures (e.g., polyester, ultra-high molecular weight polyethylene) are increasingly favored due to reduced hardware prominence and irritation. The seed mentions "聚酯带进行了初步测试，在小于0.1%的应变下获得了2000 N的最大载荷。聚酯带为24毫米宽。厚度1.2 mm，由于其编织结构，在固定牢固的情况下，骨折复位并完全缩小了骨折间隙。" (Polyester band was initially tested, achieving a maximum load of 2000 N at less than 0.1% strain. The polyester band was 24mm wide, 1.2mm thick, and due to its woven structure, it achieved fracture reduction and completely closed the fracture gap when firmly fixed.) This suggests superior biomechanical properties for certain polyester materials, which is highly relevant for preventing displacement.
* Figure-of-Eight Configuration: This configuration is most common, creating a loop around the K-wires and compressing the fragments. Bone tunnels may be used in conjunction with or instead of K-wire loops, especially in distal pole fractures.
* Fragment Comminution: Excessive comminution can compromise K-wire purchase and tension band effectiveness, necessitating alternative fixation methods or augmentation.

The biomechanical study outlined in the seed content aims to "评估张力带钢丝的生物力学强度" (evaluate the biomechanical strength of the tension band wire) by altering K-wire positions. This research, utilizing 3D CT analysis and 3D printed models for precise 1.8 mm axial drilling, exemplifies the rigorous approach needed to identify optimal configurations.

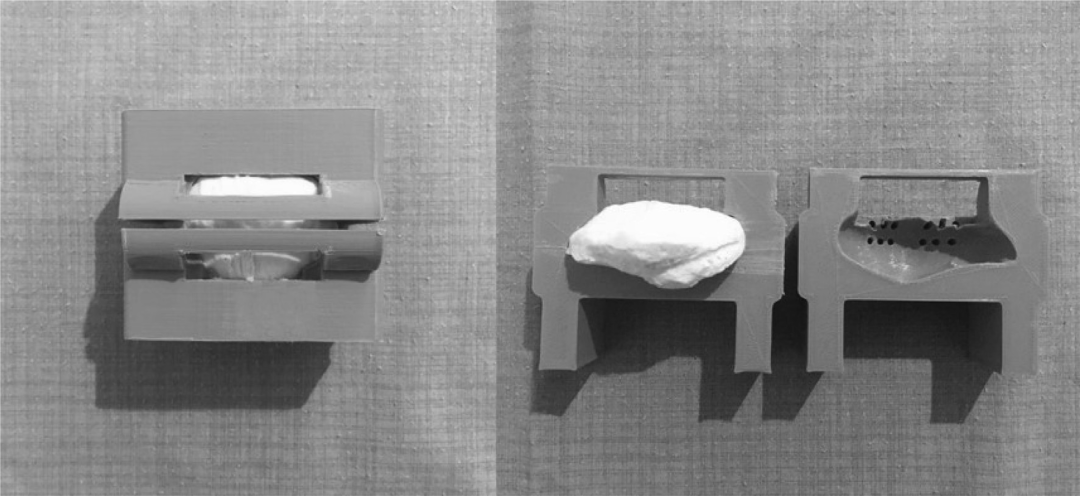

Figure 2. Patella specimen placed in a guide plate before transverse osteotomy. Axial holes allow for standard hole placement in the structure, facilitating precise K-wire positioning for biomechanical evaluation.

Understanding these biomechanical principles is paramount for surgeons to precisely execute the tension band technique and minimize the risk of early failure, particularly the 2mm displacement threshold that often signifies clinical instability.

Indications & Contraindications

Careful patient selection is critical for successful outcomes with modified tension band wiring.

Indications for Operative Management

• Displaced Patellar Fractures:
  • Fracture displacement greater than 2-3 mm on any radiographic view. This threshold is particularly relevant given the article's focus on preventing 2mm displacement.
  • Articular step-off or incongruity exceeding 2 mm.
  • Vertical displacement or fragment separation impairing the extensor mechanism.
• Loss of Extensor Mechanism Function: Inability to actively extend the knee against gravity.
• Open Fractures: Require urgent debridement and fixation to minimize infection risk.
• Fracture-Dislocations or Multi-ligamentous Knee Injuries: Patellar fracture fixation is often part of a broader surgical plan.
• Comminuted Fractures Amenable to Fixation: Where fragments are large enough for K-wire purchase and a tension band can provide adequate compression.

Contraindications for Operative Management

• Non-Displaced or Minimally Displaced Fractures: Displacement less than 2-3 mm with intact extensor mechanism.
• Severe Comminution: Where fragments are too small to hold K-wires or suture material, making stable fixation impossible. Alternative strategies (e.g., partial patellectomy, cerclage wiring around remaining fragments) may be considered, but tension banding is generally contraindicated.
• Significant Soft Tissue Compromise: Including severe open fractures with extensive soft tissue loss, active infection, or precarious skin conditions, which may preclude surgical intervention or require delayed fixation.
• Pre-existing Conditions: Patients with severe osteoporosis where implant purchase is inadequate, or those with significant medical comorbidities precluding surgery.
• Non-Ambulatory Patients: In whom maintenance of the extensor mechanism is not a functional priority.

Table: Operative vs. Non-Operative Indications for Patellar Fractures

Pre-Operative Planning & Patient Positioning

Meticulous pre-operative planning is essential to anticipate surgical challenges and optimize outcomes.

Pre-Operative Assessment

1. Clinical Evaluation:
   • Detailed history of injury mechanism and patient comorbidities.
   • Physical examination: inspect for skin integrity, swelling, ecchymosis, palpate for bony tenderness and gaps. Assess extensor mechanism integrity (active straight leg raise). Neurovascular status of the limb.
2. Radiographic Imaging:
   • Anteroposterior (AP) and Lateral Radiographs: Essential for initial diagnosis, assessing displacement, comminution, and articular step-off. A true lateral view is crucial to measure displacement accurately.
   • Merchant View (Axial Patellar View): Useful for evaluating articular incongruity and subluxation, though often difficult to obtain in acute trauma.
   • Computed Tomography (CT) Scan: Indicated for complex fracture patterns (e.g., severe comminution, sagittal split, osteochondral fragments) to fully delineate the fracture morphology, assess articular involvement, and assist in surgical planning for K-wire trajectory. The seed content mentions 3D CT analysis, highlighting its role in understanding complex patellar morphology for optimal pin placement.

Pre-Operative Planning

1. Fracture Pattern Analysis: Based on imaging, classify the fracture and determine the most appropriate fixation strategy. For transverse fractures, tension banding is usually preferred.
2. Implant Selection:
   • K-wires: Typically 1.8 mm (as specified in the seed content), stainless steel, sharpened at one end. Ensure adequate length for bicortical purchase and external bending.
   • Tension Band Material: Stainless steel wire (e.g., 18 or 20 gauge) or high-strength non-absorbable suture (e.g., #5 Ethibond, FibreWire, or the polyester band described in the seed content, 24mm wide, 1.2mm thick). The superior load characteristics of the polyester band (2000 N max load at <0.1% strain) make it an attractive option to minimize stretch and subsequent displacement.
   • Ancillary Fixation: Small bone clamps for temporary reduction, cerclage wires for highly comminuted fragments if salvageable.
3. Templating: Mentally (or physically, if using advanced imaging) template K-wire trajectories and tension band pathways to achieve optimal biomechanical stability, especially considering the different anterior/posterior and medial/central/lateral positions investigated in the described study.
4. Informed Consent: Discuss surgical procedure, potential risks (infection, nonunion, hardware complications, stiffness, re-displacement), benefits, and expected rehabilitation course.

Patient Positioning

1. Anesthesia: General or regional anesthesia (spinal/epidural) with or without sedation.
2. Positioning: Supine position on the operating table.
3. Limb Preparation: The entire limb from hip to ankle should be prepped and draped to allow for full range of motion intraoperatively, particularly to assess the extensor mechanism and tension band effectiveness during knee flexion and extension. A tourniquet is typically applied high on the thigh to ensure a bloodless field, crucial for precise fracture reduction and K-wire placement.

Detailed Surgical Approach / Technique

The execution of the modified Weber tension band technique demands precision, particularly in K-wire placement, to counteract the forces leading to early fracture displacement.

1. Incision and Exposure

• Midline Longitudinal Incision: The preferred approach is a straight midline longitudinal incision over the patella, extending proximally along the quadriceps tendon and distally along the patellar ligament. This provides excellent exposure, facilitates dissection, and allows for potential extension for quadriceps or patellar tendon repair if necessary.
• Subcutaneous Dissection: Carefully dissect through the subcutaneous tissue to expose the retinaculum and the fracture site. Meticulous hemostasis is maintained throughout.
• Arthrotomy (Optional): If there is significant intra-articular involvement or loose bodies, a medial or lateral parapatellar arthrotomy can be performed for joint inspection and debridement. However, for a simple transverse fracture, direct exposure of the fracture line is often sufficient.

2. Fracture Reduction

• Debridement: Remove any hematoma, loose bone fragments, or soft tissue interposition from the fracture site to achieve an accurate reduction.
• Anatomical Reduction: Using bone clamps (e.g., Verbrugge clamps, reduction forceps), achieve anatomical reduction of the patellar fragments. The goal is a perfectly congruent articular surface and restoration of patellar length. Fluoroscopy can be used to confirm reduction, especially the articular surface.
• Temporary Fixation: Once reduced, secure the fragments temporarily with small K-wires, towel clamps, or pointed reduction clamps. Ensure these temporary aids do not interfere with subsequent definitive fixation.

3. K-wire Placement (Critical Step for Preventing Displacement)

This is the most critical step, directly impacting the biomechanical stability and likelihood of preventing 2mm displacement.
* Standard K-wire Parameters (as per seed content):
* Two 1.8 mm K-wires are typically used.
* They are placed "沿骨折线垂直平行放置" (perpendicular and parallel to the fracture line) to maintain reduction.
* The wires are inserted "在前皮质表面下5 mm处进入，并在矢状面上与前皮质平行" (5 mm below the anterior cortical surface and run parallel to the anterior cortex in the sagittal plane). This positioning aims to create a sufficient lever arm for the tension band wire while ensuring adequate bone stock for purchase.
* Conventionally, "两根克氏针将髌骨纵向分成三份" (the two K-wires divide the patella longitudinally into thirds) in the coronal plane, suggesting a somewhat central placement.

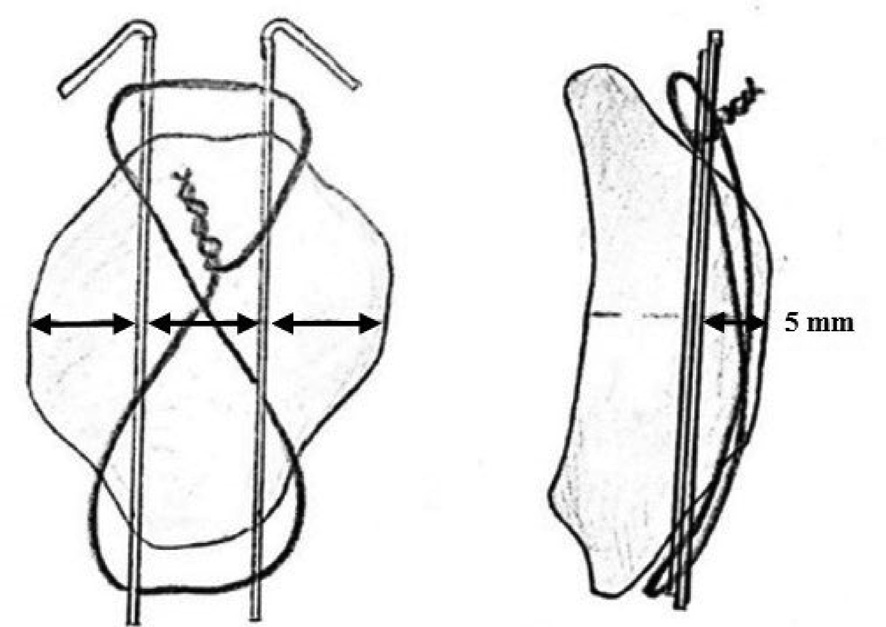

Figure 1. Schematic diagram of traditional tension band wiring technique for transverse patellar fracture, illustrating conventional K-wire placement.

• Optimized K-wire Positioning (Addressing the 2mm Displacement Problem):
  The core of the study described in the seed content focuses on evaluating how changes in pin track position affect biomechanical strength. The aim is to provide "重要的指导" (important guidance) for optimal K-wire placement to prevent early fracture displacement. The study investigated 6 different fixation groups based on K-wire configuration in the sagittal (anterior/posterior) and coronal (medial/central/lateral) planes:
  • Anterior-Medial (AM): K-wires positioned anteriorly and medially within the patella.
  • Anterior-Central (AC): K-wires positioned anteriorly and centrally.
  • Anterior-Lateral (AL): K-wires positioned anteriorly and laterally.
  • Posterior-Medial (PM): K-wires positioned more posteriorly and medially.
  • Posterior-Central (PC): K-wires positioned more posteriorly and centrally.
  • Posterior-Lateral (PL): K-wires positioned more posteriorly and laterally.

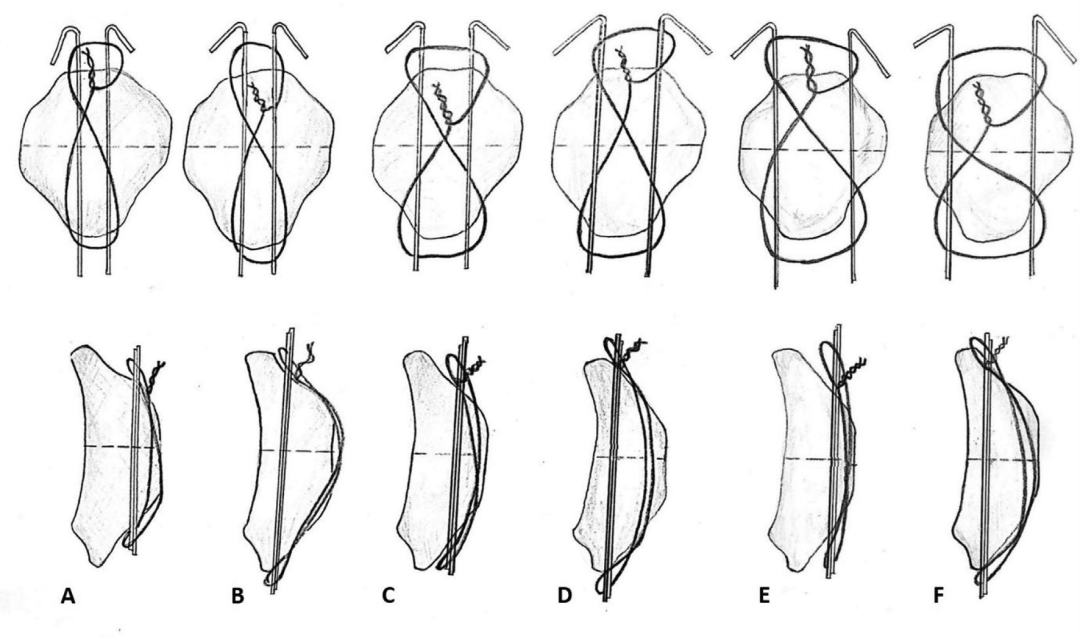

Figure 3a. Illustration depicting various K-wire configurations (e.g., Anterior-Medial, Anterior-Central, Anterior-Lateral) within the patella, explored for biomechanical optimization.

Figure 3b. Further illustration showing different K-wire configurations, including Posterior-Medial, Posterior-Central, and Posterior-Lateral positions.

• Practical Guidance for Precision:
  • Fluoroscopic Guidance: Use image intensifier to confirm K-wire trajectory in both AP and lateral views. Ensure K-wires are bicortical and exit the distal pole without penetrating the articular cartilage.
  • Aiming Guides/Templates: While not standard clinical tools for every case, the biomechanical study's use of 3D printed molds for 1.8 mm axial drilling suggests that precision guides can significantly improve accuracy. In clinical practice, careful palpation and visualization, combined with fluoroscopy, are crucial.
  • Avoiding Articular Penetration: K-wires must be placed far enough from the articular surface to prevent damage but close enough to the anterior cortex to provide adequate leverage for the tension band.
  • Parallelism: Ensure the two K-wires are parallel to each other and perpendicular to the fracture plane for optimal mechanical advantage and to prevent rotation of fragments.
  • Pin Bending: Once K-wires are seated, bend the proximal ends approximately 180 degrees over the anterior patellar cortex to prevent migration and create loops for the tension band wire. Trim the distal ends flush with the patellar apex or slightly beyond, then bend them over.

4. Tension Band Wire/Suture Placement

• Material Selection: As highlighted in the seed content, while stainless steel wire is common, high-strength polyester bands (24mm wide, 1.2mm thick, capable of 2000 N max load) offer superior biomechanical properties and may reduce the risk of re-displacement.
• Configuration:
  • Figure-of-Eight: Pass the tension band material in a figure-of-eight fashion around the bent K-wire ends (proximally and distally). This creates a loop that encompasses the fracture.
  • Bone Tunnels (Alternative/Augmentation): In cases of distal pole comminution or to provide additional purchase, bone tunnels can be drilled through the patellar fragments instead of relying solely on K-wire loops for the tension band wire.
• Tensioning: This is a crucial step to achieve stable compression.
  • Slow and Sequential Tightening: The tension band material should be tightened slowly and incrementally, ensuring uniform compression across the fracture site.
  • Knee Range of Motion: While tightening, perform gentle knee flexion and extension to ensure dynamic compression. The tension band should resist distraction during flexion. Optimal tension results in firm fracture compression, restoring patellar shape and articulation.
  • Fragment Stability: Verify that the fragments are stable and that no gaps or undue motion occur at the fracture site during intraoperative range of motion.

5. Retinaculum Repair and Closure

• Retinaculum Repair: Any significant tears in the medial or lateral retinaculum should be meticulously repaired with absorbable sutures (e.g., #1 or #2 Vicryl). This restores the integrity of the extensor mechanism and prevents secondary instability.
• Layered Closure: Irrigate the wound thoroughly. Close the subcutaneous layers and skin in a standard layered fashion.

Complications & Management

Despite meticulous surgical technique, complications can occur with modified tension band wiring. Recognizing and addressing these is crucial for long-term patient function.

1. Early Fracture Displacement (>2mm)

• Incidence: As highlighted in the seed content, early displacement occurs in up to 30% of cases. This is the primary concern this academic review addresses.
• Causes:
  • Inadequate reduction at the time of surgery.
  • Imprecise K-wire placement (e.g., too shallow, not bicortical, poor sagittal/coronal positioning, as studied by the seed content).
  • Insufficient tensioning of the tension band wire.
  • Weak or improper tension band material (e.g., using wire that stretches excessively).
  • Early, aggressive rehabilitation or non-compliance with weight-bearing restrictions.
  • Severe comminution compromising implant purchase.
• Management:
  • Re-evaluation: Radiographic assessment (AP, lateral, sometimes CT) to quantify displacement.
  • Conservative vs. Surgical: If displacement is minimal and the extensor mechanism is intact, prolonged immobilization may be considered. However, if displacement exceeds 2-3 mm, or if extensor lag is significant, revision surgery is typically indicated.
  • Revision Surgery: Involves re-reduction, removal of failed hardware, and re-fixation with optimized K-wire placement, stronger tension band material (e.g., the high-strength polyester band), and potentially adjunctive fixation (e.g., cerclage wires, small plates for comminution).

2. Hardware Prominence and Irritation

• Incidence: Very common, especially with K-wires and bulky wire knots.
• Causes: Superficial placement of K-wire ends or tension band knots, inadequate burying of hardware.
• Management:
  • Conservative: If symptoms are mild, observation and symptomatic treatment may suffice.
  • Hardware Removal: Most commonly, hardware removal is performed after fracture union (typically 6-12 months post-op) once the bone has healed and is strong enough to withstand physiological loads.

3. Infection

• Incidence: Relatively low, but a serious complication.
• Causes: Contamination during surgery, compromised soft tissue envelope, hematoma.
• Management:
  • Early Infection (Superficial): Oral or intravenous antibiotics, local wound care.
  • Deep Infection: Surgical irrigation and debridement, tissue cultures, prolonged intravenous antibiotics. Hardware removal may be necessary if infection persists, though this risks nonunion if performed before healing.

4. Nonunion or Malunion

• Incidence: Less common with proper technique, but possible.
• Causes: Inadequate reduction, insufficient fixation stability, biological factors (e.g., poor vascularity, severe comminution, infection), patient non-compliance.
• Management:
  • Nonunion: Revision surgery with bone grafting (autograft or allograft), plate fixation, or stronger tension band.
  • Malunion: May result in extensor lag, patellofemoral pain, or premature arthritis. Minor malunions may be observed. Significant malunion might require corrective osteotomy or partial patellectomy.

5. Extensor Lag and Stiffness

• Incidence: Common, particularly with prolonged immobilization.
• Causes: Adhesions, quadriceps weakness, malunion, inadequate rehabilitation.
• Management:
  • Aggressive Physical Therapy: Focus on regaining range of motion and quadriceps strength.
  • Manipulation Under Anesthesia (MUA): For severe stiffness unresponsive to therapy.
  • Surgical Adhesiolysis: Rarely needed if MUA fails.

Table: Common Complications, Incidence, and Salvage Strategies

Post-Operative Rehabilitation Protocols

A structured and progressive rehabilitation protocol is crucial for restoring knee function and preventing complications following patellar fracture fixation with modified tension band wiring. The protocol must be individualized based on fracture stability, patient compliance, and surgical findings.

Phase 1: Immediate Post-Operative (Weeks 0-2)

• Goals: Protect fixation, minimize pain and swelling, initiate quadriceps activation.
• Immobilization:
  • Initially, the knee is typically immobilized in full extension with a knee immobilizer or hinged knee brace, locked at 0 degrees.
  • The duration of strict immobilization depends on intraoperative stability; typically, 2-4 weeks.
• Weight Bearing:
  • Non-weight bearing (NWB) or touch-down weight bearing (TDWB) with crutches for the initial 2-4 weeks to protect the healing fracture and fixation.
  • Progress to partial weight bearing (PWB) as pain allows and radiographic healing progresses.
• Exercises:
  • Quadriceps Isometrics: Gentle quad sets to promote muscle activation without knee motion.
  • Ankle Pumps: To prevent deep vein thrombosis.
  • Hip Abduction/Adduction/Flexion/Extension: Non-weight bearing.
  • Gentle Patellar Mobilization: Initiate soft tissue gliding to prevent adhesions, avoiding direct pressure on the fracture site.
  • Cryotherapy and Elevation: To manage pain and swelling.

Phase 2: Early Mobilization (Weeks 2-6)

• Goals: Gradually increase knee range of motion (ROM), improve quadriceps strength, progress weight bearing.
• Knee Brace Management:
  • Transition to a hinged knee brace with controlled ROM.
  • Begin gentle active and passive ROM exercises, typically starting at 0-30 degrees of flexion and progressively increasing by 10-15 degrees per week, as tolerated and dictated by the surgeon. Avoid excessive flexion (beyond 90 degrees initially) to prevent overstressing the tension band.
• Weight Bearing:
  • Progress to PWB with crutches, working towards full weight bearing (FWB) over the next 2-4 weeks, provided radiographic healing is evident and the fracture site is non-tender.
• Exercises:
  • Gentle Active-Assisted ROM: Heel slides, prone hangs (supervised).
  • Quadriceps Strengthening: Progress from isometric contractions to low-resistance, pain-free exercises (e.g., straight leg raises in different planes, mini-squats within brace limits).
  • Hamstring Curls (Seated/Prone): Low resistance.
  • Gait Training: With crutches, focusing on proper heel-toe progression.

Phase 3: Intermediate Strengthening and Functional Progression (Weeks 6-12)

• Goals: Restore full knee ROM, significant improvement in quadriceps strength, return to normal gait.
• Knee Brace: Typically discontinued by 8-12 weeks if stability is confirmed and full ROM is achieved.
• Weight Bearing: FWB without assistive devices.
• Exercises:
  • Full ROM Exercises: Progress to full knee flexion.
  • Progressive Resistance Exercises (PREs):
    • Wall squats, lunges, step-ups.
    • Leg press, stationary cycling (low resistance initially).
    • Balance and proprioception exercises (e.g., single-leg stance).
  • Swimming/Aquatic Therapy: Excellent for pain-free ROM and strengthening.
  • Scar Massage: To prevent adhesions and improve soft tissue mobility.

Phase 4: Advanced Strengthening and Return to Activity (Weeks 12+)

• Goals: Maximize strength, power, endurance, and agility; prepare for return to sport/high-demand activities.
• Exercises:
  • High-Level PREs: Advanced squats, plyometrics (jumping, hopping), sport-specific drills.
  • Running Progression: Gradual return to running, starting with light jogging.
  • Agility Drills: Weaving, cutting, directional changes.
  • Continued Proprioceptive Training: Unstable surfaces, functional movements.
• Hardware Removal: Typically considered after radiographic union (6-12 months post-op), especially if hardware prominence causes symptoms. Rehabilitation continues post-hardware removal, with a short period of activity modification.
• Return to Sport: Based on objective criteria: full pain-free ROM, symmetrical quadriceps strength (>90% of contralateral limb), good balance and proprioception, and successful completion of sport-specific functional testing. This phase can take 6-12 months or longer.

Summary of Key Literature / Guidelines

The management of patellar fractures, particularly transverse patterns, has evolved considerably since the initial descriptions of tension band wiring. The modified Weber tension band technique, utilizing two K-wires and a figure-of-eight cerclage, remains the cornerstone of treatment for displaced transverse fractures due to its sound biomechanical principles. However, the consistent reporting of complications, especially early fracture displacement (up to 30%), highlights areas for refinement.

Evolution of the Tension Band Principle:
Historically, early attempts at patellar fracture fixation often involved simple cerclage wiring or fragment excision. The introduction of the tension band principle by Weber et al. in the mid-20th century marked a significant advancement. This technique fundamentally shifts tensile forces on the anterior patella during knee flexion into compressive forces at the fracture site, promoting direct bone healing. Numerous biomechanical studies have confirmed the superior stability of tension band constructs compared to simple wiring or screw fixation alone for transverse patterns.

K-wire Placement: A Critical Variable:
The seed content explicitly identifies K-wire placement as a key determinant of construct stability. Traditional teaching dictates two 1.8 mm K-wires placed bicortically, perpendicular to the fracture, and parallel to the anterior cortex in the sagittal plane, roughly dividing the patella into thirds longitudinally. However, the study described in the original content highlights the need for a more granular understanding of optimal K-wire positioning by investigating six distinct configurations (AM, AC, AL, PM, PC, PL). This research underscores that subtle deviations from "traditional" placement can significantly impact biomechanical strength and contribute to the high rates of early displacement. The precise methodology of using 3D CT analysis and 3D printed molds for standard axial drilling points towards the increasing demand for high-fidelity studies to inform surgical best practices. Such studies are critical to establish empirically derived guidelines for K-wire trajectory and depth to maximize the biomechanical advantage and minimize displacement, particularly striving to prevent any fragment separation exceeding 2mm.

Materials Science in Tension Banding:

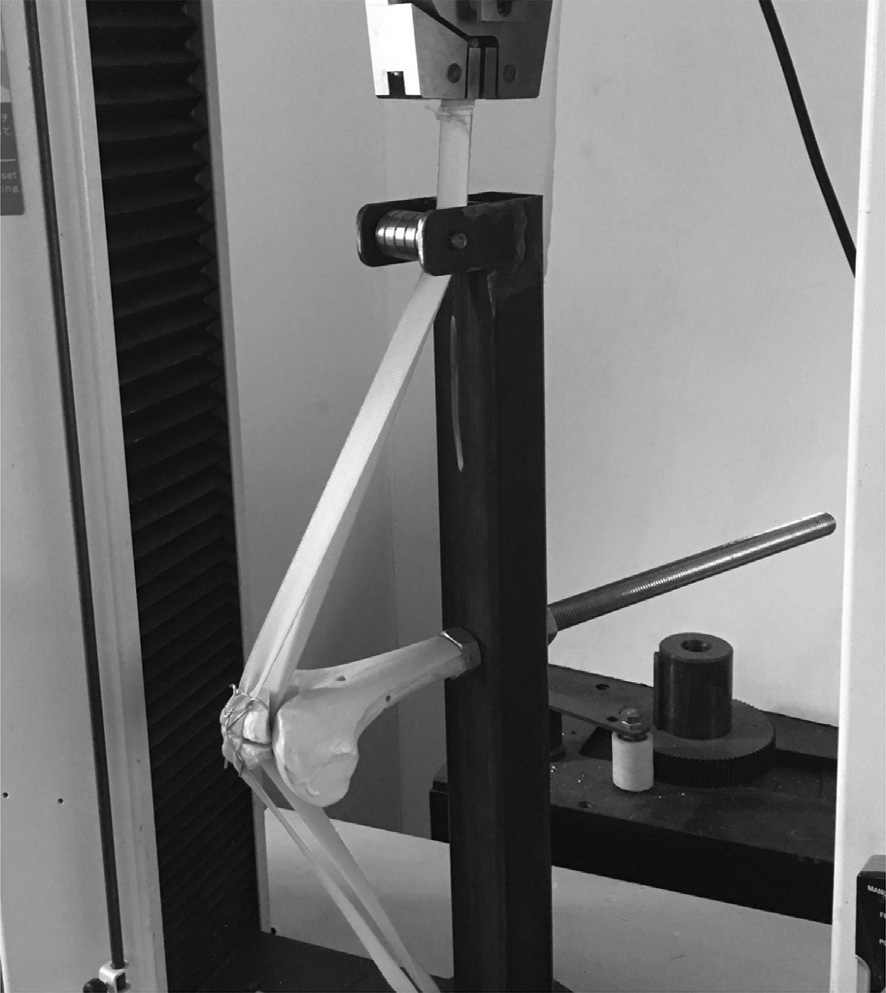

While stainless steel wire has been the standard, advancements in materials science offer alternatives. The mention of a "聚酯带" (polyester band) in the seed content, demonstrating a "2000 N的最大载荷" (maximum load of 2000 N) at "小于0.1%的应变" (less than 0.1% strain), signifies a potential paradigm shift. Such high-strength, low-stretch materials could theoretically provide a more robust tension band, reducing elasticity and subsequent fracture gapping under load, thereby directly addressing the issue of early displacement. Comparative studies evaluating the clinical outcomes of traditional metallic wires versus these advanced suture-based tension bands are crucial.

Addressing the 2mm Displacement Problem:
The consistent 30% early displacement rate underscores the clinical urgency of optimizing the Weber technique. Key literature suggests several strategies:
* Meticulous Reduction: Anatomical reduction, especially of the articular surface, is paramount.
* Precise K-wire Placement: Ensuring bicortical purchase, appropriate depth (e.g., 5mm below anterior cortex as suggested), and optimal sagittal and coronal positioning is crucial. The biomechanical study in the seed aims to define the optimal sagittal/coronal positioning to enhance stability.
* Adequate Tensioning: Slow, progressive, and firm tightening of the tension band wire is essential to achieve static and dynamic compression across the fracture site. Over-tightening can lead to wire cut-through; under-tightening results in instability.
* Augmentation: In severely comminuted fractures or those with poor bone quality, adjunctive fixation methods such as partial patellectomy for severely fragmented poles, cerclage wiring around the main fragments, or even small buttress plates may be necessary to augment stability.
* Rehabilitation Protocol: Striking a balance between early motion to prevent stiffness and adequate immobilization to protect fixation is critical. Protocols must be tailored to the stability of the construct.

Future Directions:
Ongoing research, as exemplified by the study detailed in the seed content, focuses on refining surgical techniques and materials. Biomechanical studies are invaluable for understanding the stress distribution within the patellar construct. Clinical trials comparing different K-wire configurations, tension band materials (e.g., steel wire vs. high-strength polyester bands), and rehabilitation protocols are needed to translate these biomechanical findings into improved patient outcomes. The ultimate goal is to minimize complications, particularly early displacement, and optimize long-term functional recovery for patients suffering from patellar fractures.

Current Guidelines:
Leading orthopedic associations generally recommend the modified tension band technique for displaced transverse patellar fractures. Key tenets include:
* Anatomical reduction of the articular surface.
* Placement of two parallel K-wires across the fracture, engaging both fragments.
* A figure-of-eight tension band wire anteriorly, anchored around the K-wires or through bone tunnels.
* Careful tensioning to achieve compression.
* Consideration of partial patellectomy for severely comminuted poles that cannot be fixed.

The insights from the present study regarding precise K-wire positioning, particularly concerning the anterior-posterior and medial-lateral distribution, hold significant promise for evolving these guidelines, potentially reducing the incidence of early displacement below the currently observed 30%. This advancement would represent a substantial improvement in the treatment of a common and debilitating injury.
